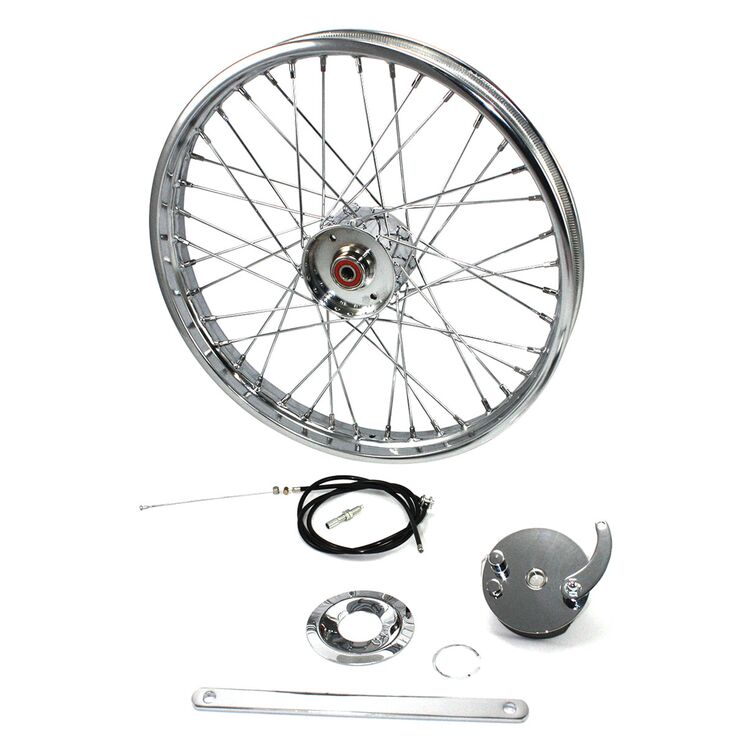

V-Twin Mfg. Mini Brake Wheel Assembly

V-Twin Mfg. 21″ x 2.15″ Mini Brake Wheel Assembly: The Ultimate “Clean” Front End

Achieve the legendary “narrow and clean” look for your custom motorcycle with the V-Twin Mfg. Mini Brake Wheel Assembly. Specifically designed for builders of choppers, bobbers, and vintage-style lane splitters, this wheel is an essential custom motorcycle part. The centerpiece of this assembly is the integrated miniature internal drum brake, which provides the necessary stopping power for your machine while hiding the braking mechanism inside the hub. This allows you to remove unsightly disc rotors, calipers, and heavy mounting brackets from your forks, resulting in the uncluttered silhouette that defines high-end V-Twin custom builds.

Internal Drum “Mini-Hub” Technology

The V-Twin Mfg. mini-drum hub is a marvel of retro-engineering. Unlike traditional large-diameter drum brakes found on vintage Harleys, this “mini” version is designed to be as unobtrusive as possible. The hub is precision-machined from high-strength aluminum and finished in show-quality chrome. Inside, it houses high-friction brake shoes that are actuated by a simple cable system. While not intended for heavy touring use, this hub provides the V-Twin performance needed for lightweight custom bikes, ensuring you have safe, controllable braking without the visual clutter of modern hydraulics.

Show-Quality 21-Inch Chrome Rim

To complement the minimalist hub, this wheel assembly features a 21″ x 2.15″ chrome-plated steel rim. This “skinny” 21-inch profile is the industry standard for traditional front ends, providing the tall, aggressive stance favored by chopper enthusiasts. The rim is meticulously laced to the mini-drum hub with 40 high-tensile spokes, all trued to ensure maximum concentricity and chassis stability. The triple-plated chrome finish offers superior resistance to oxidation and road grime, ensuring your front wheel remains a focal point of your build for years to come.

Universal Fitment for 3/4-Inch Axles

The Mini Brake Wheel Assembly is engineered for the classic 3/4-inch axle platform, making it compatible with a wide range of aftermarket and vintage fork sets. Whether you are running a DNA Springer, a Paughco girder, or a shaved 35mm Narrow Glide front end, this wheel provides a “universal” fitment solution. Please note that because this is a custom part, minor spacing and a brake stay (anchor) will be required to secure the brake backing plate to your specific fork leg. It is the perfect Stage 1 styling upgrade for those who want to blend 1960s aesthetics with modern reliability.

The V-Twin Mfg. Custom Advantage

V-Twin Mfg. has been at the forefront of the aftermarket Harley parts industry for decades, specializing in components that make custom building easier. This mini-brake wheel is a favorite among professional builders because it solves the “brakeless” legal dilemma while maintaining a pure, minimalist look. Every assembly is trued and inspected for radial and lateral runout, ensuring that your custom bobber handles with the safety and precision expected from a high-quality chassis reliability component.

Installation and Safety Recommendations

As a mechanical drum system, the mini-brake requires proper cable adjustment and periodic shoe inspection to maintain optimal performance. We recommend using a high-quality braided stainless steel brake cable to minimize “cable stretch” and maximize lever feel. During installation, it is the perfect time to add All Balls Racing 3/4-inch bearings and a new 21-inch inner tube. Always ensure the brake stay arm is securely fastened to the fork to prevent the hub from rotating under braking pressure.

Streamline your front end without sacrificing safety. Order the V-Twin Mfg. Mini Brake Wheel Assembly today and complete your custom masterpiece!
