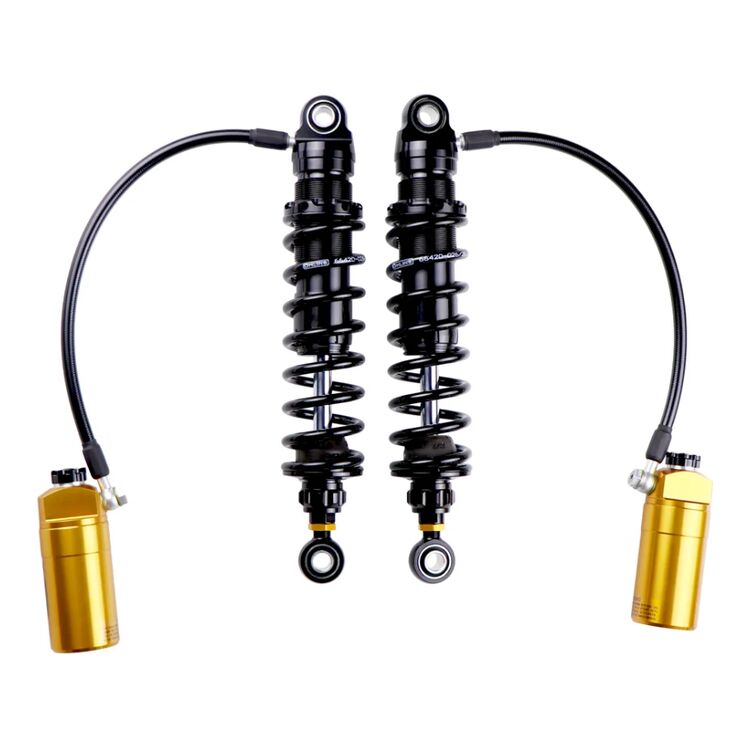

Ohlins STX Pro Reservoir Shocks For Harley Touring 2014-2026
Elite Performance: Öhlins STX Pro Reservoir Shocks for Harley Touring (2014–2026)
The Öhlins STX Pro Reservoir Shocks represent the pinnacle of rear suspension technology for the modern Harley-Davidson Touring platform, covering the Rushmore (2014–2016) and Milwaukee-Eight (M8) (2017–2026) chassis.
These shocks (commonly sold under part numbers like HD 779 or HD 778 for the Blackline series) incorporate racing-derived technology to deliver maximum adjustability, superior comfort, and the precise handling required for performance baggers.
Common Configurations for 2014–2026 Touring
Öhlins offers lengths to suit different needs, from maximum performance to a lowered stance:
13.0-inch Shocks (HD 779): Generally considered the standard length for M8 Touring, offering maximum travel for performance riding and comfort. They often feature an adjustable length of up to 1/2 inch (e.g., 12.8 inches to 13.2 inches).
Ohlins S36HRCL Rear Reservoir Shocks For Harley Touring
Ohlins PRCL line features a remote reservoir, Rebound adjustability, Compression damping adjustability and Length adjustability. Unlike standard gas over oil systems, Ohlins features a specially divided internal piston and reservoir which keeps the gas and oil separate. The reservoir also allows for much more oil to be used, enhancing cooling. This provides exceptionally consistent performance and avoids fade from use.
The external Rebound adjuster allows you to tailor the shock to your preferences and customize the feel for each ride. Heading to the twisties? Give the adjuster a turn to the right which restricts some oil flow and gives an aggressive feel, great for performance. Need maximum comfort for the long haul? Twist it to the left to increase oil flow and provide a comfortably plush ride. For maximum tunability, these shocks also include an adjustable compression damping adjuster wheel. This allows the high level of precision tuning on the compression stroke, rather than just rebound like some shocks. Finally, the Length adjustability allows you to fine tune the height of the shock without effecting stroke. This lets you set the perfect geometry on your bike.

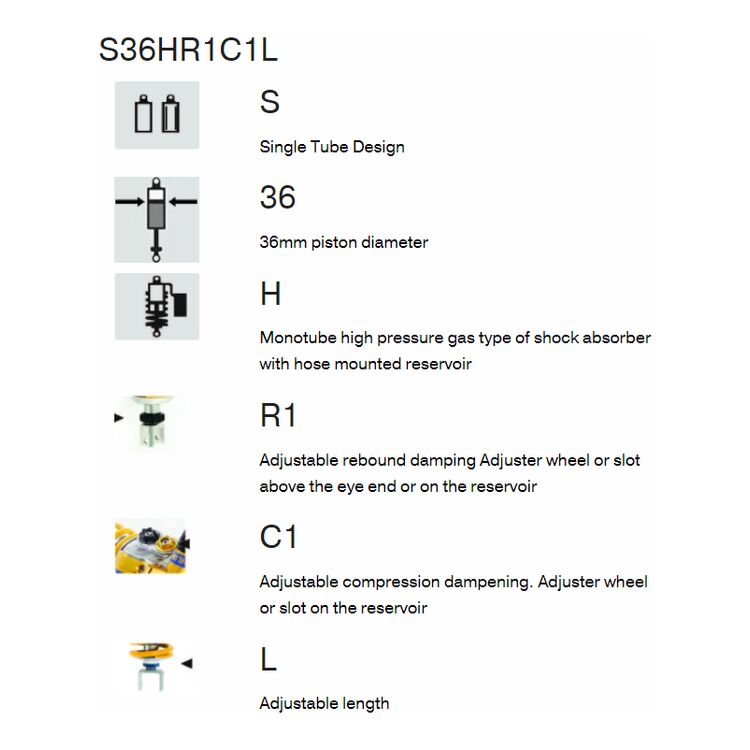

Features:
Monotube high pressure gas shock absorber with remote reservoir
Adjustable rebound damping with adjuster wheel above the end eye
Adjustable compression damping with adjuster wheel on the reservoir
Length adjustable + or – 0.2″
STX single tube design
Built-in adjustable preload
Multiple spring rates available to accommodate a wide range of riders
Hard anodized
Nitrogen charged
Precision CNC-machined components
Low-friction piston rod
Low-friction eyelets
Serviceable and repairable
36mm piston diameter
Includes preload adjuster tool

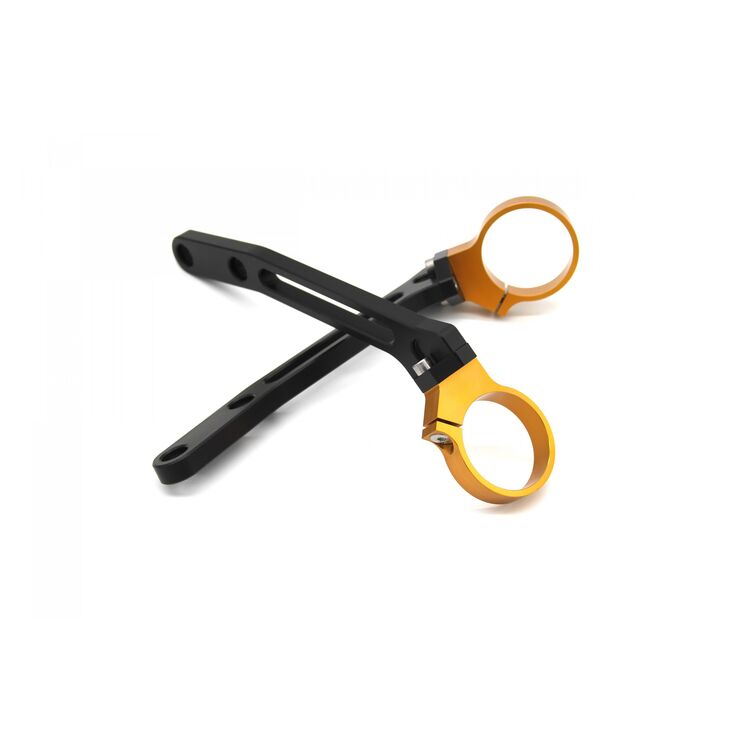

Mounting brackets included
Sold as a pair
Spring Weights:
Standard recommended for total loaded weight between 150lbs – 500lbs
Heavy Duty recommended for total loaded weight between 250lbs – 565lbs
| Product Style | AmericanV-twin Item # | Catalog Number | Store Sku | MFR. Product # | Availability |
|---|---|---|---|---|---|
| 12″ Heavy Duty Spring / Blackline | 10431687 | 10431687 | 329724 | HD778S2/HD_778_S2 | In Stock: Ships within 24 hours |
| 12″ Standard Spring / Blackline | 10417958 | 10417958 | 330055 | HD778/HD_778 | In Stock: Ships within 24 hours |
| 13″ Heavy Duty Spring / Silver | 10174677 | 10174677 | 317988 | HD_044_S2/HD_044S2 | Only 8 Left: Ships within 24 hours |
| 13″ Heavy Duty Spring / Blackline | 10431688 | 10431688 | 336679 | HD779S2/HD_779_S2 | In Stock: Ships within 24 hours |
| 13″ Standard Spring / Silver | 10174676 | 10174676 | 317987 | HD_044 | In Stock: Ships within 24 hours |
| 13″ Standard Spring / Blackline | 10417959 | 10417959 | 330056 | HD779/HD_779 | In Stock: Ships within 24 hours |
This Product Fits
Harley Davidson
Electra Glide Highway King FLHFB 2023
Electra Glide Standard FLHT 2019, 2020, 2021, 2022
Electra Glide Ultra Classic FLHTCU/I 2014-2019
Electra Glide Ultra Classic Low FLHTCUL 2015, 2016
Electra Glide Ultra Limited CVO/SE FLHTKSE 2014-2021
Electra Glide Ultra Limited FLHTK 2014-2024
Electra Glide Ultra Limited Low FLHTKL 2015, 2016, 2017, 2018, 2019
Revival FLH 2021
Road Glide CVO/SE FLTRXSE 2018-2025
Road Glide FLTRX 2015-2026
Road Glide Limited CVO FLTRKSE 2022, 2023
Road Glide Limited FLTRK 2020, 2021, 2022, 2023
Road Glide Special FLTRXS 2015-2023
Road Glide ST FLTRXST 2022, 2023
Road Glide Ultra CVO/SE FLTRUSE 2015, 2016
Road Glide Ultra FLTRU 2016, 2017, 2018, 2019
Road King CVO/SE FLHRSE6 2014
Road King FLHR/I 2014-2022
Road King Special FLHRXS 2017-2025
Street Glide CVO/SE FLHXSE 2015-2025
Street Glide FLHX/I 2014-2026
Street Glide Special FLHXS 2014-2023
Street Glide ST FLHXST 2022, 2023
Street Glide Ultra FLHXU 2025
