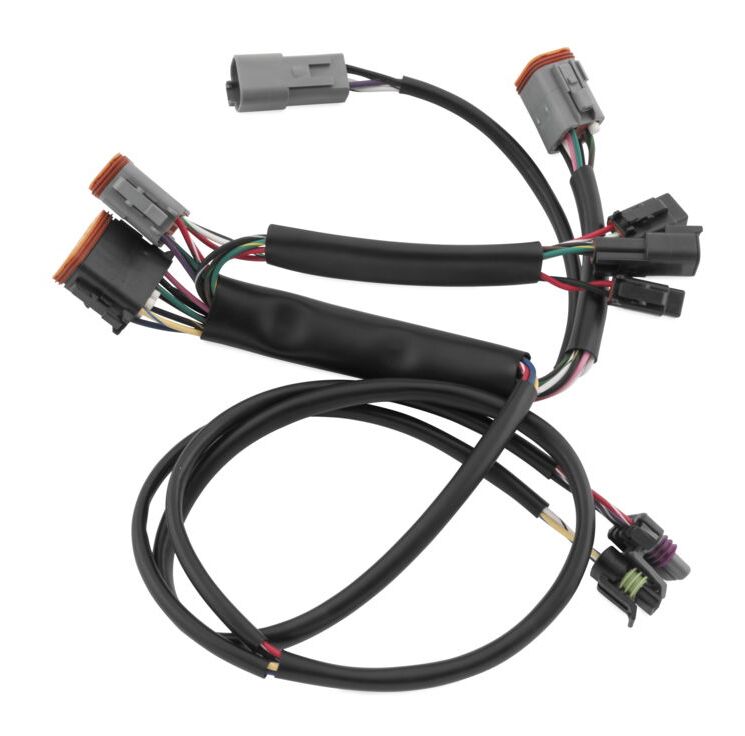

Namz EFI Conversion Ignition Wiring Harness for Harley-Davidson Twin Cam & Sportster Models
Ditch unreliable early electronic fuel injection systems and restore simple, bulletproof performance to your V-Twin with the Namz EFI Conversion Ignition Harness. Designed specifically for Harley-Davidson riders converting factory fuel-injected motorcycles over to a carburetor setup, this plug-and-play wiring harness seamlessly bridges your bike’s original chassis wiring to a standalone carb-style ignition module without tedious wire cutting, soldering, or messy electrical hacks.
Early-generation Harley-Davidson EFI systems—such as Magneti-Marelli setups and early Delphi modules—are notorious for failing sensors, vapor lock issues, expensive replacement injectors, and erratic idling. While converting the fuel delivery side to a Mikuni, S&S Cycle, or Keihin carburetor is straightforward, solving the ignition computer logic is usually a headache. The Namz EFI Conversion Harness eliminates electrical guesswork, allowing your stock gauges, charging system, safety switches, and key switch to function perfectly while supplying clean power and trigger signals to a modern aftermarket ignition tuner.
Why Choose the Namz EFI-to-Carb Ignition Harness?
When removing your factory ECM and EFI sensors, your motorcycle’s main wiring harness loses the trigger inputs needed to fire the spark plugs. Trying to re-wire factory harness plugs by hand frequently results in electrical shorts, dead tachometers, and melted ignition modules. Namz Custom Cycle Products solves this with OEM-grade connectors, color-coded TXL high-temperature wire, and direct pin-out compatibility.
| NAMZ EFI CONVERSION HARNESS SPECIFICATIONS | |
|---|---|
| Compatibility | 1999–2006 Harley-Davidson Twin Cam Models & Select XL Sportster EFI Conversions |
| Wire Type | TXL Cross-Linked Polyethylene High-Temp Wire (Strips easily, resists oil/heat) |
| Connector Types | OEM-Style Deutsch & Amphenol Waterproof Plug Housings |
| Ignition Module Support | Compatible with Daytona Twin Tec, Thunderheart, Crane Cams, and OEM Carb Modules |
| Sensor Integration | Plug-and-play leads for Crank Position Sensor (CKP) and Ignition Coil |
| Sleeving Material | Heavy-Duty Braided Nylon Sleeving for Maximum Abrasion Resistance |
| Country of Manufacture | Made in the USA |
1. True Plug-and-Play Installation
The primary advantage of the Namz EFI Conversion Harness is its factory-level integration. It plugs directly into your motorcycle’s existing main harness connector, crank position sensor (CKP), and dual-fire or single-fire ignition coil. Instead of tearing apart your backbone wiring harness, you simply plug the Namz adapter into your new carb-style ignition module (such as a Daytona Twin Tec TC88 or OEM Harley carb ignition box).
2. Retains Factory Gauge & Chassis Functions
A major concern when removing factory EFI is losing instrument cluster functionality. The Namz conversion harness preserves critical electrical pathways so your speedometer, tachometer, neutral light, oil pressure light, turn signals, and system relays continue to operate normally after the fuel injection computer is removed.
3. OEM-Grade Heavy Duty Construction
Cheaper DIY wiring kits utilize thin automotive primary wire and non-weatherproof crimp connectors that fail under V-Twin engine heat and road vibration. Namz uses USA-made TXL cross-linked wire shielded inside high-density braided nylon sleeving. Equipped with genuine Deutsch waterproof pins and connectors, this harness withstands heavy moisture, engine heat up to 250°F, and severe road vibration.
Converting EFI to Carburetor: Why Harley Riders Make the Switch
Converting a mid-2000s fuel-injected Harley-Davidson back to a mechanical carburetor is one of the most popular retrofits in the V-Twin community. The table below illustrates why swapping out early EFI with a Namz harness and carburetor is a smart investment:
| System Factor | Stock Magneti-Marelli / Early Delphi EFI | Carburetor Setup + Namz Ignition Harness |
|---|---|---|
| Throttle Response | Prone to dead spots, lag, and erratic idle air control (IAC) motors | Instant mechanical cable pull; crisp throttle response across all RPMs |
| Component Reliability | Multiple failing sensors (TPS, MAP, IAT, Temperature Sensors) | Simple mechanical jetting; only relies on a crank position sensor and coil |
| Repair & Tuning Cost | Expensive obsolete replacement ECMs, injectors, and specialized shop software | Inexpensive carb jets, easy roadside maintenance, simple dial-in ignition timing |
| Exhaust Sound & Character | High idle RPMs; modern sanitized exhaust note | Classic low-RPM Harley potato-potato idle sound and richer exhaust tone |
Vehicle Fitment & Compatibility Guide
The Namz EFI Conversion Ignition Harness is custom-engineered to fit Harley-Davidson motorcycles undergoing fuel injection removal.
Guaranteed Fitment Applications:
- Harley-Davidson Touring Models (Electra Glide, Road King, Street Glide, Road Glide): 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
- Harley-Davidson Softail Models (Fat Boy, Heritage, Night Train, Softail Standard): 2001, 2002, 2003, 2004, 2005, 2006
- Harley-Davidson Dyna Models (Super Glide, Low Rider, Wide Glide): 2004, 2005
- Harley-Davidson Sportster XL Models (EFI Conversions): 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2026
(Note: Requires an aftermarket standalone carburetor ignition module designed for carbureted Twin Cam or Sportster models, such as Daytona Twin Tec TC88A or Thunderheart modules.)
Step-by-Step Installation Overview & Wiring Steps
Installing the Namz EFI Conversion Harness simplifies what used to be a complicated multi-day electrical project into an easy afternoon job.
Required Tools:
- Basic socket set & ratchet (3/8″, 7/16″, 1/2″)
- Torx key set (T25, T27)
- Wire tie cutters / Zip ties
- Dielectric grease (for moisture-proofing electrical pins)
Installation Breakdown:
Step 1: Disconnect Power & Remove EFI System
- Disconnect the main battery ground cable to prevent short circuits.
- Remove the gas tank, EFI throttle body, injectors, fuel pump assembly, and original EFI wiring sub-harness.
- Install your replacement carburetor intake manifold, petcock tank adapter, and carb (Mikuni HSR42, S&S Super E, or Keihin CV40).
Step 2: Unplug the Factory ECM
- Locate the stock EFI Electronic Control Module (ECM) under the seat or side cover.
- Unplug the large factory ECM multi-pin connector plug. You can store or sell the stock EFI computer unit.
Step 3: Route & Plug in the Namz Harness
- Position the Namz EFI Conversion Harness along the main frame backbone wire path.
- Plug the main harness end into your motorcycle’s factory chassis connector plug.
- Connect the sensor leads directly to your OEM Crank Position Sensor (CKP) and ignition coil terminals. Applying a thin coat of dielectric grease to all plugs is recommended.
Step 4: Connect Standalone Ignition Module & Test
- Plug the remaining multi-pin connector end of the Namz harness into your new carbureted ignition module.
- Mount the ignition module securely in the frame cavity using high-tack hook-and-loop tape or hardware.
- Reconnect the main battery ground, turn on the ignition key, check instrument lights, turn choke on, and start your newly carbureted V-Twin!
Frequently Asked Questions (FAQs)
Q: Do I need to buy a separate ignition module when using this harness?
A: Yes. Your stock EFI computer (ECM) relies on signals from fuel injection sensors that are removed during a carb swap. This Namz harness allows you to plug in a standalone carbureted ignition module (such as a Daytona Twin Tec TC88A or OEM 12-pin carb ignition module) to control spark timing.
Q: Will my factory speedometer and odometer still work after installing this?
A: Yes! The Namz harness retains speed sensor signal routing through the main chassis harness, ensuring your electronic speedometer, odometer, and indicator lights operate properly.
Q: Can I revert back to fuel injection in the future?
A: Absolutely. Because the Namz conversion harness uses OEM-style plug-and-play connectors, you don’t cut or damage your stock main wiring loom. The conversion is 100% reversible.
Q: What carburetor works best with this setup?
A: This harness works with any carburetor conversion setup. Popular choices include the Mikuni HSR42 (for sharp throttle response), S&S Cycle Super E (for high-RPM performance), or standard Keihin CV40 carburetors.
Final Verdict: The Cleanest Way to Convert Harley EFI to Carburetor
If you’re tired of chasing electrical glitches on early Harley-Davidson fuel injection systems, converting to a carburetor is the ultimate key to reliability. The Namz EFI Conversion Ignition Harness makes the conversion professional, clean, and hassle-free, ensuring your ignition system fires reliably every time you hit the starter button.
Ditch the EFI headaches and enjoy simple, high-performance V-Twin riding. Order your Namz EFI Conversion Harness today and finish your carb swap right!
