Legend Suspension Revo Coil Shocks For Harley Dyna 2006-2017

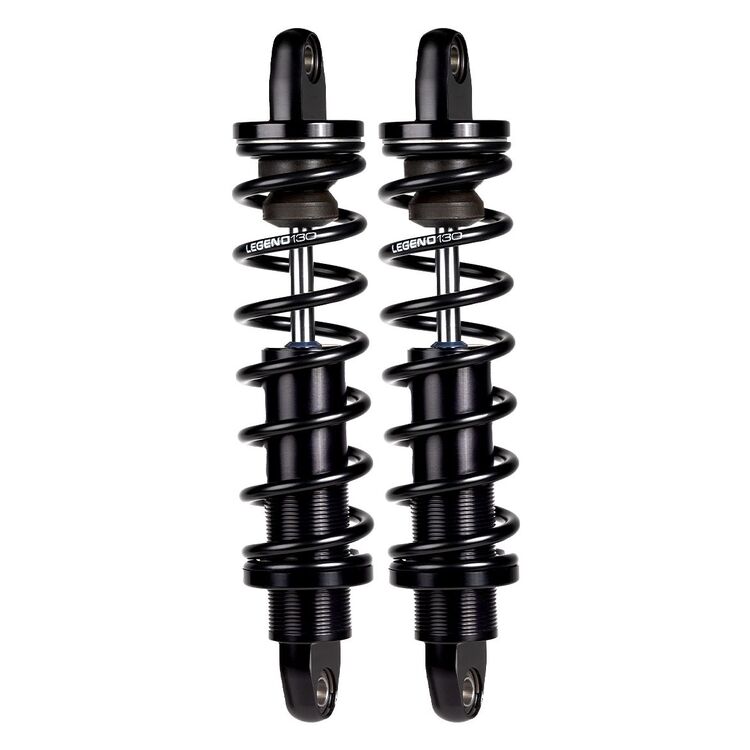

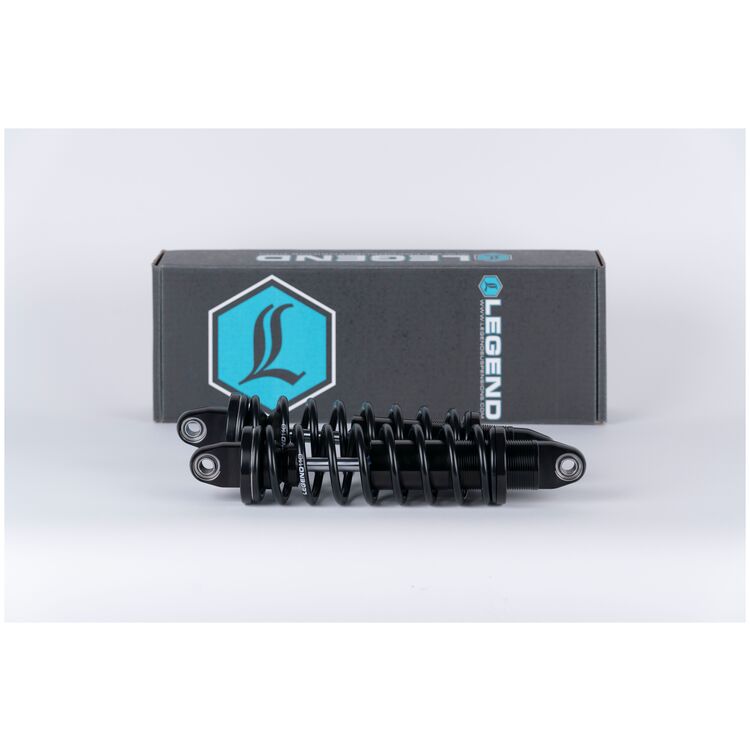

Legend REVO Coil Shocks for Harley Dyna (2006-2017)
The REVO shocks are the base model in Legend’s coilover lineup (sitting below the REVO-A and REVO-ARC). They focus on providing a superior, non-adjustable damping system matched with highly effective coil springs.
Key Features of the Standard REVO Shocks
Superior Ride Quality: Legend’s proprietary Touring-specific coil spring rates are designed to give a plush ride while preventing bottoming out, which is a common complaint with stock Dyna suspension.
Larger “Sweet Spot”: The unique, longer coil length is compressed into the shock body to create a wider, more usable “sweet spot” of travel without increasing the shock’s overall length.
Tool-Free Pre-load Adjustment: Pre-load is easily adjusted by hand, allowing you to quickly compensate for a passenger, luggage, or a change in riding style without needing tools.
Internal Damping System: Features a high-flow piston and deflective disc valving to react quickly to road conditions and provide controlled performance.
Construction: Hard-anodized machined aluminum body, low-friction seals, and a Lifetime Warranty.
Fitment: Fits all Harley Dyna models from 2006 to 2017 (including Street Bob, Low Rider, Fat Bob, Wide Glide, etc.)
The Step-Up: REVO-A and REVO-ARC
If you’re looking for even more performance and fine-tuning, Legend offers two popular step-up models for the Dyna:
1. REVO-A (Adjustable Rebound)
Key Upgrade: Adds 6 external knob adjustments for rebound damping.
Benefit: Allows the rider to control the rate at which the shock extends after hitting a bump. This is excellent for tuning out “pogo-ing” or bouncing, particularly at high speeds or with heavy loads.
2. REVO-ARC (Adjustable Rebound & Compression w/ Remote Reservoir)
Key Upgrade: Includes independent external adjustment for both Rebound and Compression damping (like the Touring shocks discussed previously).
Benefit: Provides the highest level of tuning capability. The Remote Reservoir helps maintain consistent performance by managing heat during extreme riding conditions.
The base REVO Coil Shocks are a huge jump over stock, while the REVO-A is the most popular choice for the Dyna platform due to the valuable rebound adjustability.
Legend Suspension Revo Coil Shocks For Harley Dyna
Legend makes one of the most comfortable shocks on the market. The REVO line uses coil springs that are specially wound a few inches longer than a standard spring. When compressed into the shock body, the special spring delivers a wider “sweet spot” that is more usable than competitors that yields a great ride over a wide variety of road conditions without compromising performance.
Features:
Legend’s touring specific spring rates produce superior ride quality and performance
REVO coils provide improved plush ride quality, control, and resistance to bottoming-out
REVO’s extended coil length has larger “sweet spot” without increasing overall shock length
REVO’s unique spring rate offers the ability to soften pre-load, reducing ride height and maintaining a smooth ride
Allows minimal pre-load adjustments when changing between riders’ weights or loads
Adjusts by hand, no tools needed
Easy installation and alignment, provided by spherical bearings on both top and bottom
Great air suspension for your motorcycle
Backed by lifetime warranty
Made by hand in Sturgis, South Dakota, USA
Note: Heavy-duty springs are recommended when combined rider and passenger weight exceeds 250lbs.
Aggressive riding styles, stunt riders, and bikes used primarily for 2-up, may also benefit from Heavy-duty springs.
| Product Style | AmericanV-twin Item # | Catalog Number | Store Sku | MFR. Product # | Availability |
|---|---|---|---|---|---|
| Black / 12″/Standard Duty | 952244 | 103-625 | 1310-0942 | In Stock: Ships within 24 hours | |
| Black / 12″/Heavy Duty | 952246 | 103-627 | 1310-0944 | In Stock: Ships within 24 hours | |
| Black / 13″/Standard Duty | 952245 | 103-626 | 1310-0943 | In Stock: Ships within 24 hours | |
| Black / 13″/Heavy Duty | 952247 | 103-628 | 1310-0945 | In Stock: Ships within 24 hours | |
| Black / 14″/Standard Duty | 988044 | 174-880 | 1310-1096 | In Stock: Ships within 24 hours | |
| Black / 14″/Heavy Duty | 988045 | 174-881 | 1310-1097 | In Stock: Ships within 24 hours |
Fitment Notes & Exceptions
Heavy-duty application is recommended for 250lb.+ rider and passenger total weight. Also consider Heavy Duty if the majority of your riding is 2-UP, stunt riding, or aggressive riding style
OEM Shock Studs, Part Numbers 54666-08 (2), 7880 (2) and 8185 (2) are required for 91-05 models
This Product Fits
Harley Davidson
Dyna Fat Bob FXDF 2008-2017
Dyna Low Rider FXDL/I 2006-2017
Dyna Low Rider S FXDLS 2016, 2017
Dyna Street Bob FXDB/I 2006-2017
Dyna Super Glide Custom FXDC/I 2006-2014
Dyna Super Glide FXD/I 2006, 2007, 2008, 2009, 2010
Dyna Switchback FLD 2012, 2013, 2014, 2015, 2016
Dyna Wide Glide FXDWG/I 2006-2017
