Legend Suspension REVO-ARC Remote Reservoir Shocks For Harley Touring 1999-2008
REVO-ARC Features for 1999-2008 Touring
The core technology of the REVO-ARC remains consistent, delivering maximum performance and adjustability:

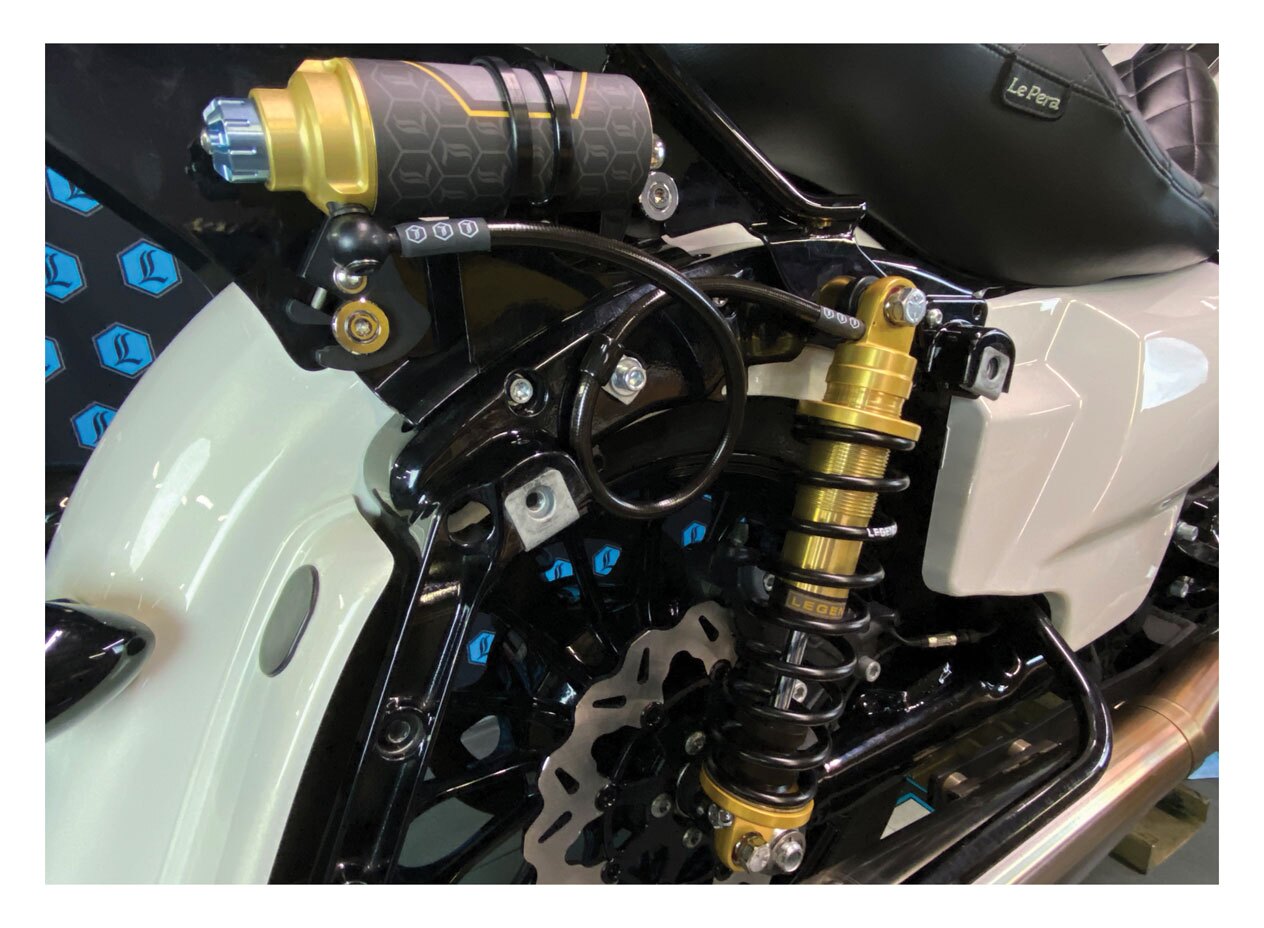

Remote Reservoir Damping: The external reservoirs provide enhanced cooling and greater oil volume, ensuring consistent, fade-free damping performance even on long rides or aggressive canyon carving—a significant improvement over the stock air-assisted shocks on these years.
Independent Adjustment: Features seven external knob adjustments for both rebound and compression damping. This allows the rider to precisely dial in the suspension response for varying speeds, passenger weight, and road conditions.
Easy Pre-load Adjustment: Tool-free pre-load adjustment via the ACME threaded body makes it fast and easy to set the sag by hand when switching between solo and two-up riding.
Spring Rates: Utilizes Legend’s Touring-specific coil springs to provide improved plush ride quality, better control, and increased resistance to bottoming-out.

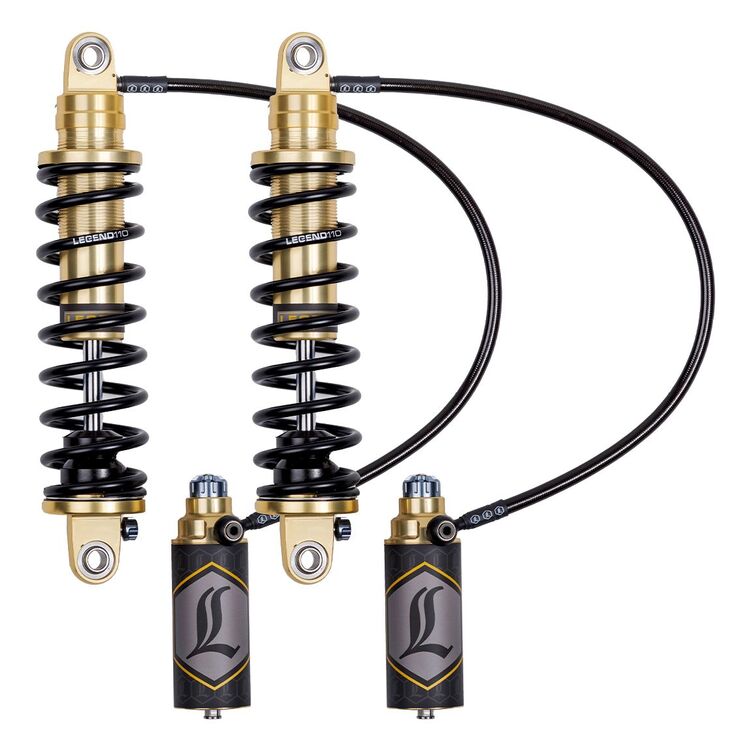

Build Quality: Made in the U.S.A. and backed by a Lifetime Warranty. Available in popular finishes like Black, Gold, and Clear Hard-Coat Anodize.
Fitment Notes for FL 1999-2008 Models

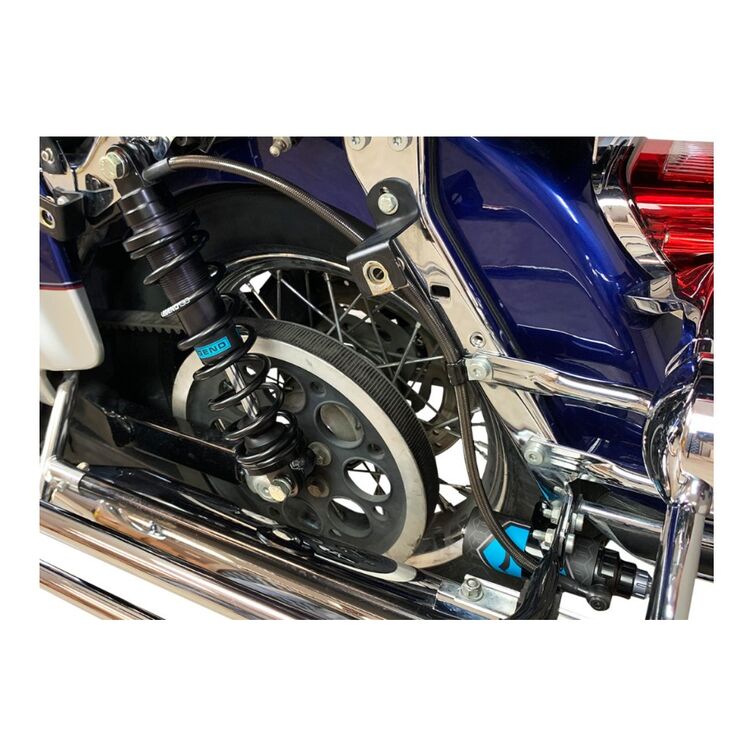

The REVO-ARC shocks are designed to fit the following models within the 1999-2008 range, including: Road King (FLHR), Electra Glide (FLHT), Road Glide (FLTR), and Street Glide (FLHX).
Length Options: Available in 13-inch and 14-inch lengths.
14″ Note: Choosing the 14-inch shock option often requires the use of shorter style exhausts that do not extend beyond the rear axle to ensure proper clearance.
Duty Options:
Standard Duty: Recommended for solo riders or total rider/passenger weight less than 500 lbs.
Heavy Duty: Recommended for a total rider/passenger/luggage weight of 500 lbs. or more, or for aggressive riding styles.
Light Duty (Less Common): Sometimes available for solo riders weighing less than 200 lbs.
Upgrading to the REVO-ARC on these older models is one of the most impactful changes you can make for modern-day ride quality.
Legend Suspension REVO-ARC Remote Reservoir Shocks For Harley Touring
For the last 25 years Legend Suspension has been making shocks for V-Twin motorcycles. If you want to go fast and go far, there is no better upgrade to your machine than a set of high-quality, adjustable Legend Shocks! At the very top of their line sits the REVO-ARC rear shocks. The REVO-ARCs utilize an external fluid reservoir for additional cooling capacity that is remote mounted for easy access and customization. The REVO-ARCs are adjustable for both rebound and compression damping with 7 position dials on both settings ensuring you can find a setting that is just right!
Features:

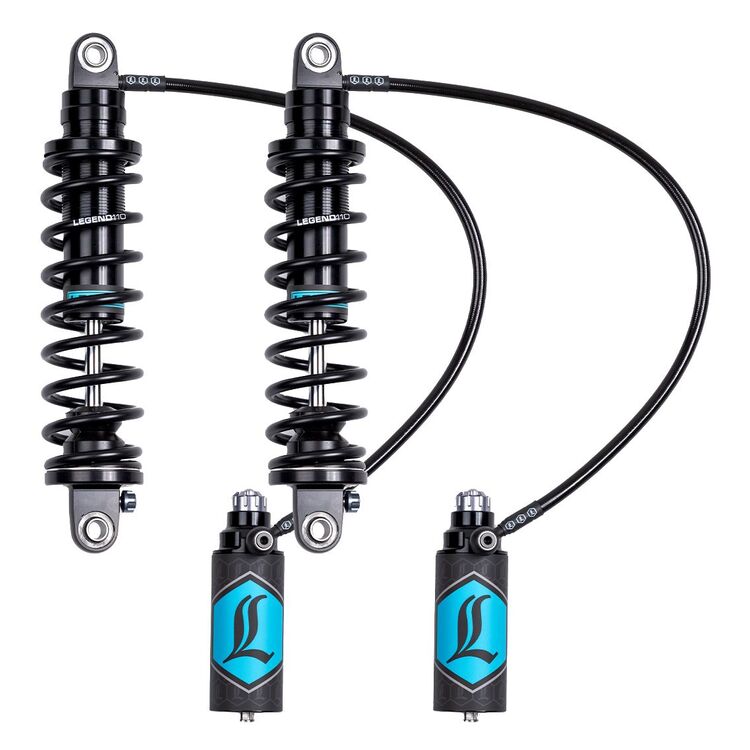

Finished in Black Type III Hard-Coat Anodize
Spring rates produce superior ride quality and performance
REVO coils provide improved plush ride quality, control, and resistance to bottoming-out
Extended coil length has larger “sweet spot” without increasing overall shock length
Adjusts by hand with no tools needed
Available in 13″ and 14″, standard or heavy-duty applications
Easy installation and alignment, provided by spherical bearings on both top and bottom
35mm monotube construction
Deflective disc valve stacks
Balanced/Matched piston and base-valve design specific to motorcycle applications
Low friction sealing system and PTFE based sliding bearings for improved performance and feel
Seven external knob adjustments allow fine-tuning of rebound and compression
Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
Light to heavy riders can fine-tune ride preference
Aggressive to casual riding styles can tune to desired quality or personal preference
Note FL: Heavy Duty applications are recommended for 500lb. + rider and passenger weight.
Made in the USA
| Product Style | AmericanV-twin Item # | Catalog Number | Store Sku | MFR. Product # | Availability |
|---|---|---|---|---|---|
| Clear / 13″/Heavy-Duty | 10239255 | 590-0262 | 1310-1927 | In Stock: Ships within 24 hours | |
| 13″/Heavy-Duty / Gold | 10239256 | 590-0250 | 1310-1903 | Only 6 Left: Ships within 24 hours | |
| Black / 13″/Heavy-Duty | 10239260 | 510-2480 | 1310-1879 | In Stock: Ships within 24 hours | |
| 13″/Standard Duty / Gold | 10239249 | 590-0249 | 1310-1902 | In Stock: Ships within 24 hours | |
| Clear / 13″/Standard Duty | 10239250 | 590-0261 | 1310-1926 | In Stock: Ships within 24 hours | |
| Black / 13″/Standard Duty | 10239257 | 510-2479 | 1310-1878 | In Stock: Ships within 24 hours | |
| 14″/Heavy-Duty / Gold | 10239253 | 590-0252 | 1310-1905 | In Stock: Ships within 24 hours | |
| Clear / 14″/Heavy-Duty | 10239254 | 590-0264 | 1310-1929 | In Stock: Ships within 24 hours | |
| Black / 14″/Heavy-Duty | 10239259 | 510-2482 | 1310-1881 | In Stock: Ships within 24 hours | |
| Clear / 14″/Standard Duty | 10239251 | 590-0263 | 1310-1928 | Only 5 Left: Ships within 24 hours | |
| 14″/Standard Duty / Gold | 10239252 | 590-0251 | 1310-1904 | In Stock: Ships within 24 hours | |
| Black / 14″/Standard Duty | 10239258 | 510-2481 | 1310-1880 | In Stock: Ships within 24 hours |
Fitment Notes & Exceptions
14″ shock options require use of shorter style exhausts that do not extend beyond the rear axle
This Product Fits
Harley Davidson
Electra Glide Classic FLHTC/I 1999-2008
Electra Glide CVO/SE FLHTCSE 2004
Electra Glide CVO/SE FLHTCSE2 2005
Electra Glide Standard FLHT/I 1999-2008
Electra Glide Ultra Classic FLHTCU/I 1999-2008
Road Glide CVO/SE FLTRSEI2 2001
Road Glide FLTR/I 1999-2008
Road Glide SE FLTRSEI 2000
Road King Classic FLHRC/I 1999-2008
Road King Custom FLHRS/I 2004, 2005, 2006, 2007
Road King CVO/SE FLHRSE3 2007
Road King CVO/SE FLHRSE4 2008
Road King CVO/SE FLHRSEI 2002
Road King CVO/SE FLHRSEI2 2003
Road King FLHR/I 1999-2008
Street Glide FLHX/I 2006, 2007, 2008
Ultra Classic Electra Glide CVO/SE FLHTCUSE 2006
Ultra Classic Electra Glide CVO/SE FLHTCUSE2 2007
Ultra Classic Electra Glide CVO/SE FLHTCUSE3 2008
