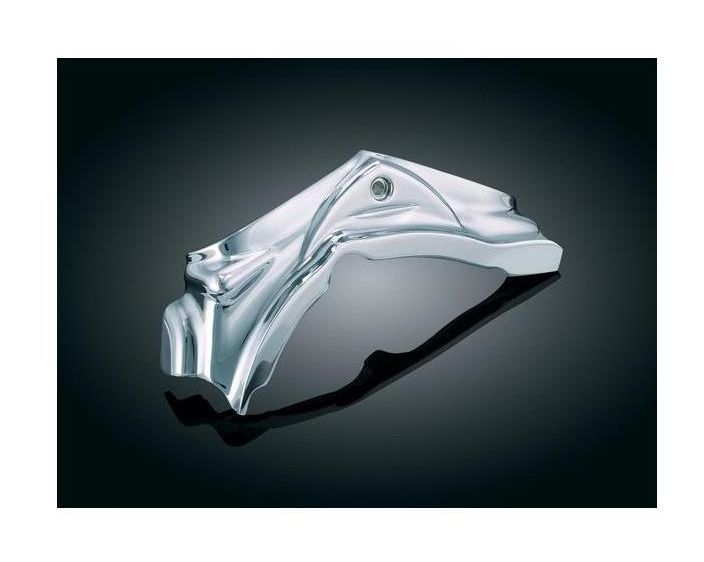

Kuryakyn Cylinder Base Timing Hole Cover For Harley-Davidson Softail (2007–2017)
Seamless Chrome Transition & Custom Engine Base Detail for Softail Twin Cam V-Twins
Clean up the left side of your Harley-Davidson engine bay and mask unfinished crankcase castings with the Kuryakyn Cylinder Base Timing Hole Cover. Specially contoured for 2007 through 2017 Harley-Davidson Softail models powered by Twin Cam 96, 103, and 110 engines, this custom dress-up piece bridges the gap between the primary case, inner crankcase, and lower cylinder fins.
Finished in Kuryakyn’s show-quality mirror chrome, this sleek accent cover transforms a dark, unfinished utilitarian section of the engine block into a smooth, continuous polished surface. It conceals exposed bolt heads, rough casting lines, and the crankcase timing plug region, delivering a pristine visual flow that perfectly complements outer primary covers, transmission shrouds, and chrome horn covers.
Technical Specifications & Product Details
| Feature / Metric | Product Specification | Rider Benefit |
|---|---|---|
| Brand / Manufacturer | Kuryakyn | Industry benchmark in custom chrome dress-up accents and V-Twin accessories |
| Product Style | Cylinder Base & Crankcase Timing Hole Cover | Conceals raw crankcase castings, timing plug areas, and lower cylinder hardware |
| Material Construction | Die-Cast Aluminum / Premium High-Impact Composite | Built to withstand intense engine radiant heat and road vibration without warping |
| Finish Type | Show-Quality Mirror Chrome Plating | Blends seamlessly with OEM Harley-Davidson chrome engine covers and inner primary cases |
| Installation Method | Direct Bolt-On / Adhesive Mount | Quick, non-destructive installation using standard garage hand tools |
Design Highlights & Custom Engine Aesthetics
### Concealing Unfinished Softail Engine Castings
Late-model Twin Cam 96, 103, and 110 Softail engine cases feature exposed crankcase timing plugs and rough aluminum casting seams where the cylinders bolt to the block. The Kuryakyn Cylinder Base Cover acts as a smooth architectural shroud, draping over these raw areas to create a polished, custom-built look across the lower left side of the engine.
### Engineered for Heat & Vibration Resistance
Designed specifically to endure the extreme operating temperatures generated by large-displacement air-cooled V-Twins, this cover will not tarnish, discolor, or peel. Its precise, vibration-isolated fit prevents annoying rattles, keeping your powertrain looking smooth and running quietly down the highway.
Vehicle & Engine Compatibility Guide
Kuryakyn Cylinder Base Timing Hole Covers are engineered specifically for 2007–2017 Harley-Davidson Softail models equipped with counterbalanced Twin Cam engine crankcases:
### Compatible Harley-Davidson Models (2007–2017)
- Harley-Davidson Softail Heritage Classic: FLSTC (2007–2017)
- Harley-Davidson Softail Fat Boy / Special: FLSTF, FLSTFB, FLSTFBS (2007–2017)
- Harley-Davidson Softail Deluxe: FLSTN (2007–2017)
- Harley-Davidson Softail Slim / S: FLS, FLSS (2012–2017)
- Harley-Davidson Softail Breakout: FXSB (2013–2017)
- Harley-Davidson Softail Custom / Night Train: FXSTC, FXSTB (2007–2010)
- Harley-Davidson Softail Deuce: FXSTD (2007)
Fitment Note: Fits 2007–2017 Softail models with Twin Cam 96ci, 103ci, and 110ci engines. Does not fit 2000–2006 Softail Twin Cam 88 models, Touring/Dyna models, or 2018-up Milwaukee-Eight (M8) Softail engines due to different crankcase castings.
Step-by-Step DIY Installation Overview
Installing the Kuryakyn Cylinder Base Timing Hole Cover on your Softail is a clean, 20-minute installation requiring standard shop tools.
### Required Tools
- Standard Hex / Allen Key Wrench Set
- Isopropyl Alcohol & Clean Microfiber Towel
- Blue Threadlocker (Loctite 243)
### Step 1: Surface Preparation
Ensure the engine is cool to the touch. Thoroughly clean the left-side crankcase timing hole region and lower cylinder base with isopropyl alcohol to clear away road grime, wax, and oil residue.
### Step 2: Alignment & Dry Fitting
Dry-fit the cover against the cylinder base and crankcase to confirm alignment around pushrod tubes, sensor wiring, and primary housing edges.
### Step 3: Secure Installation & Final Wipe-Down
Fasten the cover using supplied hardware or high-bond adhesive backing per included instructions. Apply blue threadlocker to threaded fasteners, torque snugly, and wipe down the chrome with a soft cloth to complete the transformation.
Frequently Asked Questions
### Does this cover fit 2006 Softail models?
No. 2006 Softail models still utilized the earlier Twin Cam 88 engine case configuration. This specific cover is designed for 2007–2017 Softail models featuring late-style Twin Cam 96, 103, and 110 engine castings.
### Will this cover interfere with engine oil changes or routine maintenance?
No. The cover sits neatly out of the way of drain plugs, oil filters, and primary inspection covers, allowing you to perform routine service without removing the dress-up accent.
