Garmin Tread 2 Navigator – SxS Edition

Garmin Tread 2 SxS Edition: Precision Navigation for the Modern Off-Roader

The Garmin Tread® 2 – SxS Edition is the definitive 2026 tool for the driver who pushes their UTV or Side-by-Side to the absolute limit. Standard GPS units often lag when traveling at high speeds or fail when exposed to the fine silt and moisture of the trail. The Tread 2 solves these issues with a high-performance 10Hz multi-GNSS receiver, which monitors your position, heading, and velocity ten times every second. This high-frequency data ensures your racing line is accurately represented on the screen without the “jumping” effect seen on slower devices. The unit features a 6-inch high-resolution display that is significantly brighter than previous models, ensuring that even with a sun-drenched dashboard and a dusty helmet visor, your route remains crystal clear.

Intelligent Trail Awareness and Group Synergy

Navigation in a Side-by-Side requires specialized data, and the Tread 2 delivers it in abundance. It comes preloaded with TopoActive North America maps and the essential USFS Motor Vehicle Use Maps (MVUM), allowing you to see which trails are legal for your specific vehicle width. For those riding in convoys, the Group Ride Mobile feature (accessible via the Tread® app) lets you track up to 20 fellow riders on your screen in real-time. If your adventures take you deep into the backcountry where cellular signals disappear, the Tread 2 is fully compatible with inReach® satellite technology (sold separately), enabling global messaging and SOS. Furthermore, the Visual Route Planner allows you to build custom paths directly on the device, selecting between efficient travel or the most adventurous, technical trails available.

Expert Installation & Trail Advice

As specialists in powersport electronics, we recommend the Tread 2 SxS Edition for its rugged reliability. Pro Tip: Mount the unit as high as possible on your dash or roll cage using a vibration-dampening mount; this keeps the map in your peripheral vision while reducing the stress on the internal components. Installation Note: Use the included high-current power cable to wire the unit directly to your vehicle’s bus bar or battery. This ensures the 6-inch screen has sufficient amperage to maintain 100% brightness all day. Maintenance Note: After a muddy ride, you can safely wash the Tread 2, but ensure the weather-sealed port covers are fully closed before hosing down the dash. Satellite Tip: Download high-res Birdseye imagery over Wi-Fi at home before your trip; 2026 satellite files are incredibly detailed and provide a massive advantage when navigating uncharted washes or dune fields. Safety Note: Calibrate the integrated pitch and roll sensors on a flat trailer before every trip to ensure accurate vehicle attitude readings on steep inclines.

The Professional Choice for All-Terrain Dominance

Choosing the Garmin Tread 2 SxS Edition means investing in unmatched trail visibility and precision tracking. It offers a unique combination of high-frequency 10Hz data, comprehensive off-road mapping, and indestructible hardware that respects the spirit of the dirt. For the 2026 SxS enthusiast who wants the absolute best in ruggedized navigation, the Garmin Tread 2 is the unmatched leader. Lead the pack, stay connected, and conquer the unknown.

Features:

• Dimension 8.1″W x 5.4″H x 1.1″D
• 8 inch ultra bright HD color TFT display multi-touch and glove friendly
• Sunlight readable and weather resistant display
• Display resolution 1280 x 800 pixels
• Dual-orientation display
• Battery life up to 6 hours (50% backlight) / 1 hour (100% backlight)
• Rugged Construction:
  • IPX7 water rating
  • MIL-STD-810 drop rating
  • IP6X dust rating for extreme off-road durability
• Enhanced Positioning: 10 Hz multi-GNSS positioning (GPS, Galileo) for superior accuracy
• Barometric altimeter and compass
• Advanced Navigation:
  • Preloaded topographical maps and high-definition 3D terrain
  • Preloaded US public land boundaries and private land parcel maps (greater than 4 acres)
  • Preloaded USFS Roads and Trails, including motor-vehicle-use-maps for motorcycle, ATV, SxS and full-size 4×4
  • Turn-by-turn trail navigation and navigate-a-track navigation
  • Point-to-point navigation
  • Compatible with Outdoor Maps+ Subscription.
  • Includes map updates
  • Downloadable Satellite Imagery
• Wi-Fi map and software updates
• Access to live services via app (traffic, weather, etc.)
• Compatible with Group Ride Radio (sold separately)
• Group Ride Mobile (with Garmin Tread app)
• Bluetooth pairing for helmets, headsets or smartphones
• Control music and media from smartphone or MP3 player
• Smart notifications via app
• Magnetic locking magnet-assisted mount
• Track recorder (breadcrumbs)
• Ultimate Public Campgrounds directory
• Dog tracking (when paired to compatible dog track system)
• Compatible with the Garmin Tread app for route planning and data management (waypoints, tracks and routes)
• Pitch and Roll gauges
• Compatible with Garmin PowerSwitch digital switch box (sold separately)
• Compatible with handlebar controller (sold separately)
• Compatible with external GPS antenna with mount (sold separately)
• 64 GB internal storage, expandable with microSD card (up to 256 GB, not included)
• Compatible with BC 50 backup camera (sold separately)

Includes:

• Garmin Tread 2 Navigator – SxS Edition

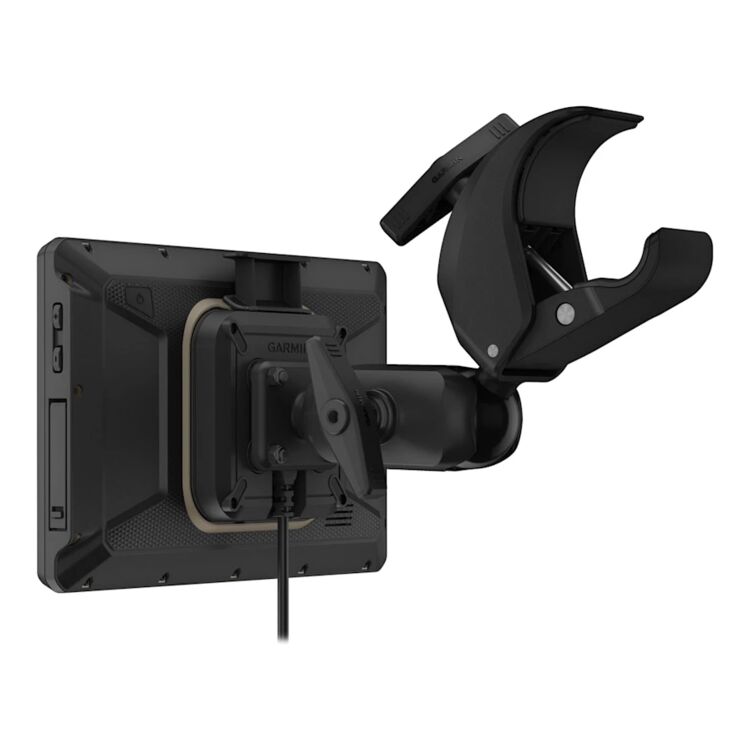

• Locking magnet-assisted mount
• Tube mount kit (1.5″ – 2.375″)
• Power cable
• USB cable
• Documentation
