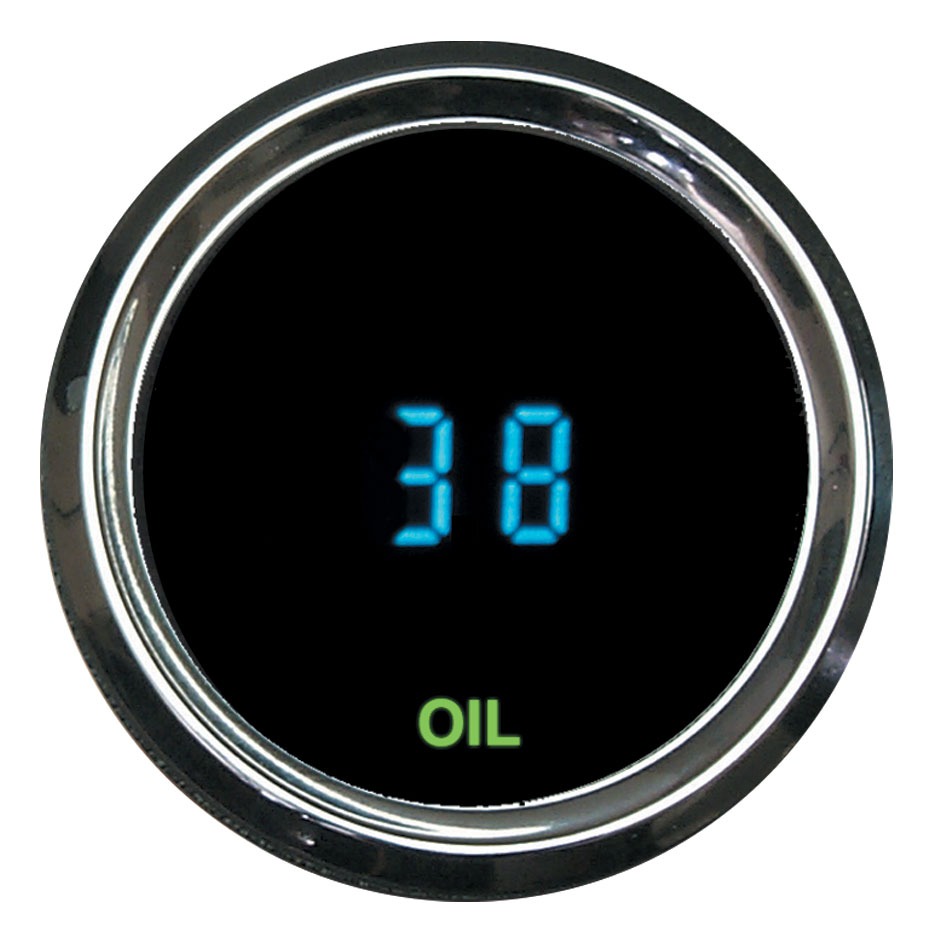

Dakota Digital Universal Performance Oil Pressure Gauge
Ultra-Precise Electronic Pressure Monitoring & High-Contrast Digital Display
Protect your high-performance engine or custom V-Twin powertrain with the uncompromising accuracy of the Dakota Digital Oil Pressure Gauge. Renowned for manufacturing world-class digital automotive and motorcycle instrumentation, Dakota Digital combines solid-state electronic pressure sensing with a high-intensity micro-processor-controlled LED display for instantaneous, glare-free oil pressure readouts.
Traditional mechanical and analog needle gauges can suffer from calibration drift, needle flutter caused by intense engine vibration, and mechanical wear over time. Dakota Digital eliminates these points of failure by replacing mechanical linkages with an advanced electronic pressure sender and digital readout. Featuring customizable low-pressure warnings, automatic night-dimming capabilities, and billet aluminum housing options, this gauge gives you absolute confidence in your engine’s internal lubrication system.
Technical Specifications & Product Details
| Feature / Metric | Product Specification | Rider / Driver Benefit |
|---|---|---|
| Brand / Manufacturer | Dakota Digital | American industry benchmark for premium digital instrumentation and custom dash systems |
| Display Type | High-Intensity Vacuum Fluorescent (VFD) or LED Readout | Delivers crystal-clear numeric visibility even in direct sunlight or dark night conditions |
| Pressure Range | 0–100 PSI (Resolution to 1 PSI increments) | Tracks exact oil pressure drops during high-RPM cornering or low-RPM hot engine idle |
| Housing Construction | Machined Billet Aluminum (Chrome or Black Anodized) | Rugged, weather-sealed casing resists severe engine heat, vibration, and moisture |
| Sensor Interface | 1/8″ NPT High-Accuracy Electronic Pressure Transducer | Eliminates messy oil lines inside the cockpit while providing microsecond signal response |
Design Highlights & Solid-State Engineering
### Electronic Sensor Precision & Safety
Dakota Digital gauges utilize a 100% electronic pressure transducer installed directly at the engine block or oil gallery port. By converting oil pressure into a precise digital signal transmitted through insulated wiring, you eliminate the safety hazard of running hot, pressurized oil capillary tubes into your vehicle’s interior cab or dash console.
### Built-in Warning & Auto-Dimming Functions
Equipped with intelligent circuitry, many Dakota Digital oil pressure gauges feature user-programmable low-pressure warning alerts that flash the display if oil pressure drops below a critical threshold. An integrated ambient light sensor or headlight-trigger line automatically dims the numeric display during night driving to prevent glare.
Universal & Harley-Davidson Vehicle Fitment Guide
Dakota Digital Oil Pressure Gauges feature versatile mounting configurations designed for both universal automotive custom dashes and direct Harley-Davidson fairing/handlebar installations:
### Compatible Application Highlights
- Harley-Davidson Touring & Softail Models: Fits standard 2″ fairing gauge cutouts (Electra Glide, Street Glide, Road Glide) and handlebar mounting pods
- American Hot Rods, Restomods & Race Vehicles: Universal fit for 2-1/16″ (52mm) dash pods, custom console panels, and billet mounting cups
- Custom V-Twin Choppers: Compatible with 1/8″ NPT engine block oil pressure ports across Evolution and Twin Cam powertrains
Fitment Note: Kit includes 1/8″ NPT electronic sender unit. Metric adapter fittings (sold separately) allow installation on European or Japanese engine blocks.
Step-by-Step DIY Installation Overview
Installing a Dakota Digital Oil Pressure Gauge is a straightforward electrical installation taking approximately 1 to 2 hours.
### Required Tools
- Standard Open-End Wrench Set
- Wire Stripper / Crimp Tool
- Teflon Thread Tape or Pipe Thread Sealant
- 12V Test Light or Multimeter
### Step 1: Install Electronic Pressure Sender
Locate the primary oil gallery port on your engine. Apply thread sealant to the 1/8″ NPT threads of the supplied electronic sender and thread it securely into the port. Do not overtighten.
### Step 2: Route Sender Wiring to Gauge
Mount the gauge into your desired 2-1/16″ dash port or handlebar pod. Route the sender signal wire safely away from hot exhaust manifolds and moving suspension parts, connecting it to the designated terminal on the back of the gauge.
### Step 3: Connect 12V Power & Ground
Connect the gauge’s 12V switched ignition wire (key-on) and ground lead. Turn the ignition key on to verify display startup, start the engine, and monitor immediate live numeric oil pressure readings.
Frequently Asked Questions
### Is a digital oil pressure gauge better than an analog needle gauge?
Digital gauges provide immediate, exact numeric values without needle bounce or parallax reading errors caused by viewing angles. They also respond faster to sudden drops in oil pressure and eliminate internal mechanical wear associated with spring-driven analog needles.
### Can I see the Dakota Digital display in direct sunlight?
Yes. Dakota Digital gauges use ultra-bright, high-contrast LED/VFD displays specifically engineered for outdoor and open-cockpit exposure, ensuring complete readability on bright sunny days on a motorcycle or in a convertible.
