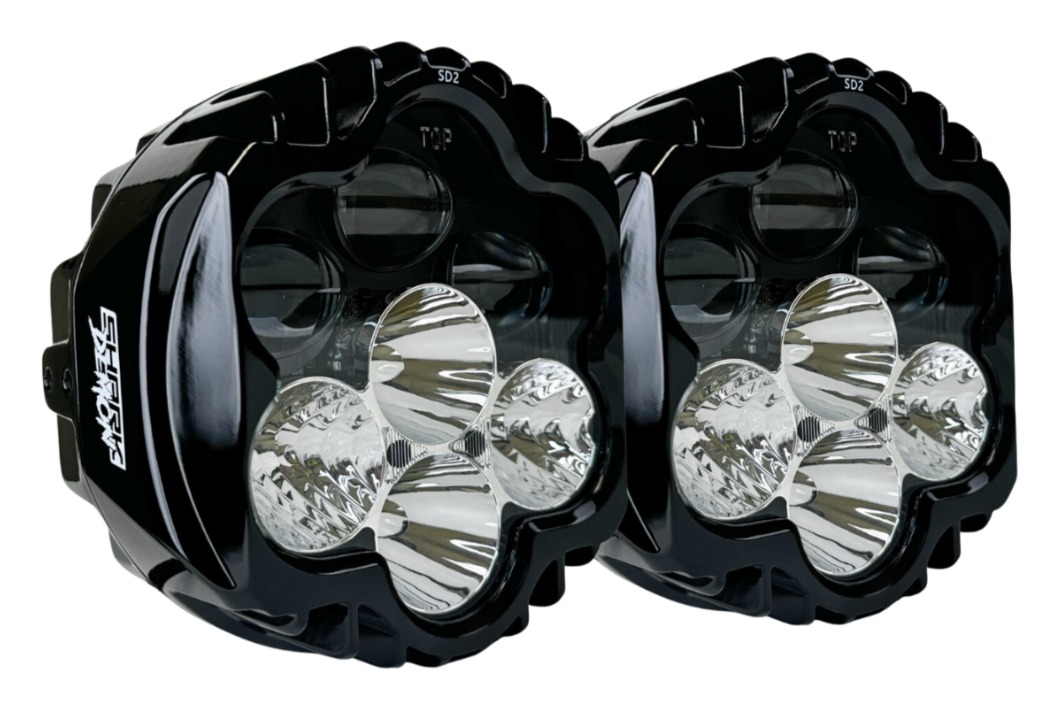

Custom Dynamics Shark Demon 2 LED Headlight Assembly for Harley-Davidson Road Glide (2015–2026)
Dominate dark highway stretches and transform your bagger’s aggressive front end with the high-performance Custom Dynamics Shark Demon 2 LED Headlight, custom-engineered for Harley-Davidson Road Glide models spanning 2015 through 2026. Designed as a direct drop-in replacement for factory dual-headlight assemblies, the Shark Demon 2 combines cutting-edge optical projection, intense lumen output, and modern blacked-out styling to create the ultimate lighting upgrade for your sharknose fairing.
Riding a Road Glide at night requires exceptional forward visibility to spot road hazards, wildlife, and debris early. Factory halogen and early-generation LED headlights often produce dim, yellowed light output with poor side-ditch spread, leaving you blind through sharp canyon turns. The Custom Dynamics Shark Demon 2 eliminates dead spots by flooding the roadway with crisp 6000K daylight-white illumination, featuring wide-angle optical lenses that illuminate shoulder lines without blinding oncoming traffic.
Why Upgrade to the Custom Dynamics Shark Demon 2?
Engineered explicitly to match the contours of the modern Road Glide inner fairing, the Shark Demon 2 Headlight Assembly is more than just a lighting upgrade—it’s a safety and performance essential. Manufactured with heavy-duty die-cast aluminum housing and impact-resistant polycarbonate lenses, this sealed LED unit withstands high-speed wind force, gravel strikes, and severe engine vibration effortlessly.
| CUSTOM DYNAMICS SHARK DEMON 2 SPECIFICATIONS | |
|---|---|
| Compatibility | 2015–2026 Harley-Davidson Road Glide Models (FLTRX, FLTRU, FLTRK, FLTRXST, CVO) |
| Color Temperature | 6000K Bright Daylight White |
| Housing Material | Heavy-Duty Die-Cast Aluminum with Thermal Cooling Fins |
| Lens Material | Hard-Coated Polycarbonate (UV-Resistant & Scratch-Proof) |
| Waterproof Rating | IP67 Fully Weather-Sealed Assembly |
| Wiring Architecture | 100% Plug-and-Play Factory Connector Integration |
| Warranty Coverage | Custom Dynamics Lifetime LED Warranty |
1. Unmatched High/Low Beam Optical Power
The Shark Demon 2 utilizes proprietary optical projectors paired with high-output LED chips. When running in low-beam mode, the unit projects a sharp, horizontal light cutoff that blankets the lane directly ahead and wide across roadside ditches. Switching on the high beam engages all optical channels simultaneously, throwing a intense beam pattern hundreds of feet down unlit highways for maximum reaction time.
2. Seamless Plug-and-Play Installation

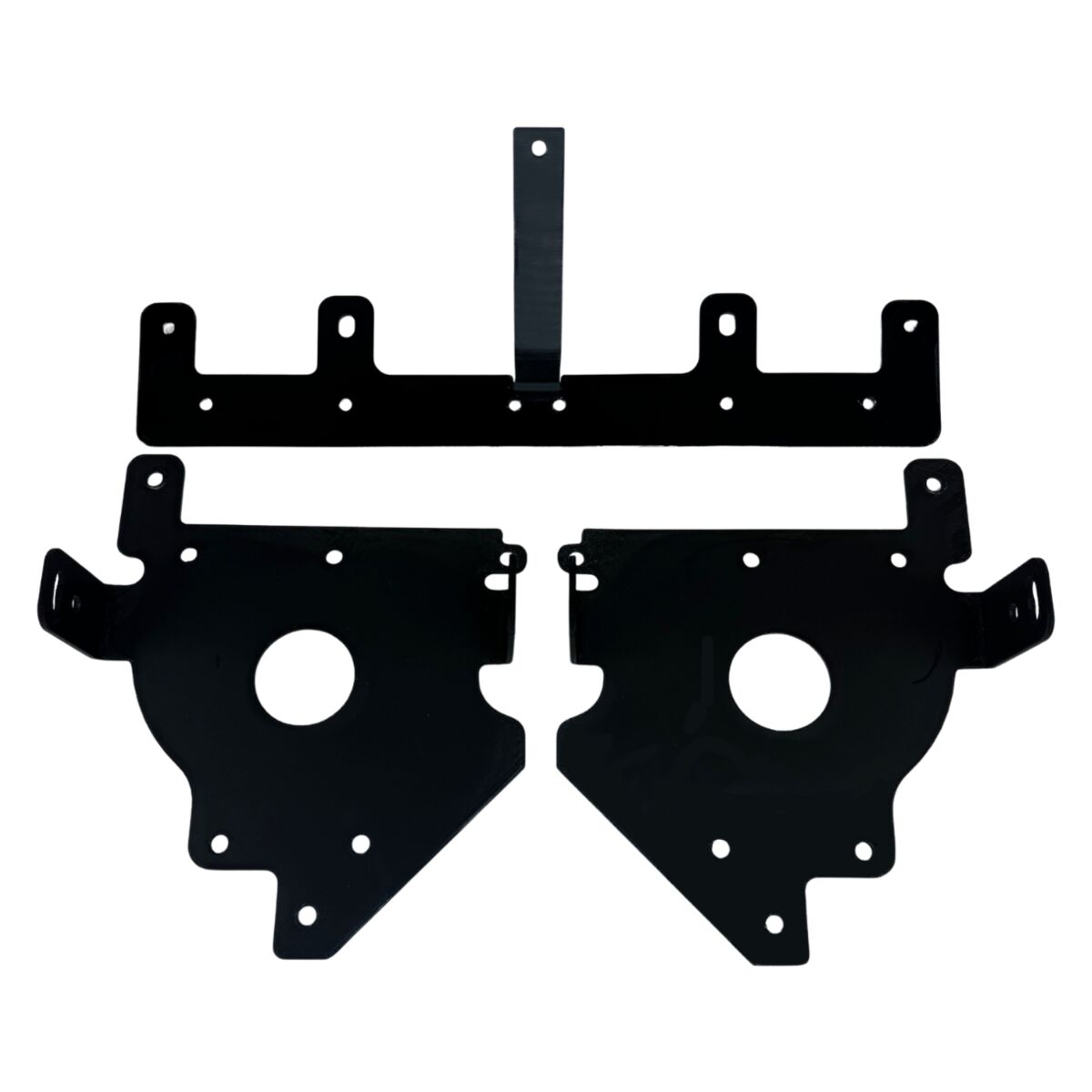

Installing high-end lighting shouldn’t require hacking up your motorcycle’s electrical system. The Custom Dynamics Shark Demon 2 is engineered to plug directly into your Road Glide’s original OEM wiring sub-harness. The headlight assembly mounts straight to stock fairing studs, requiring no custom brackets, wire splicing, or electrical modifications.
3. Aggressive Custom Styling & Heat Management

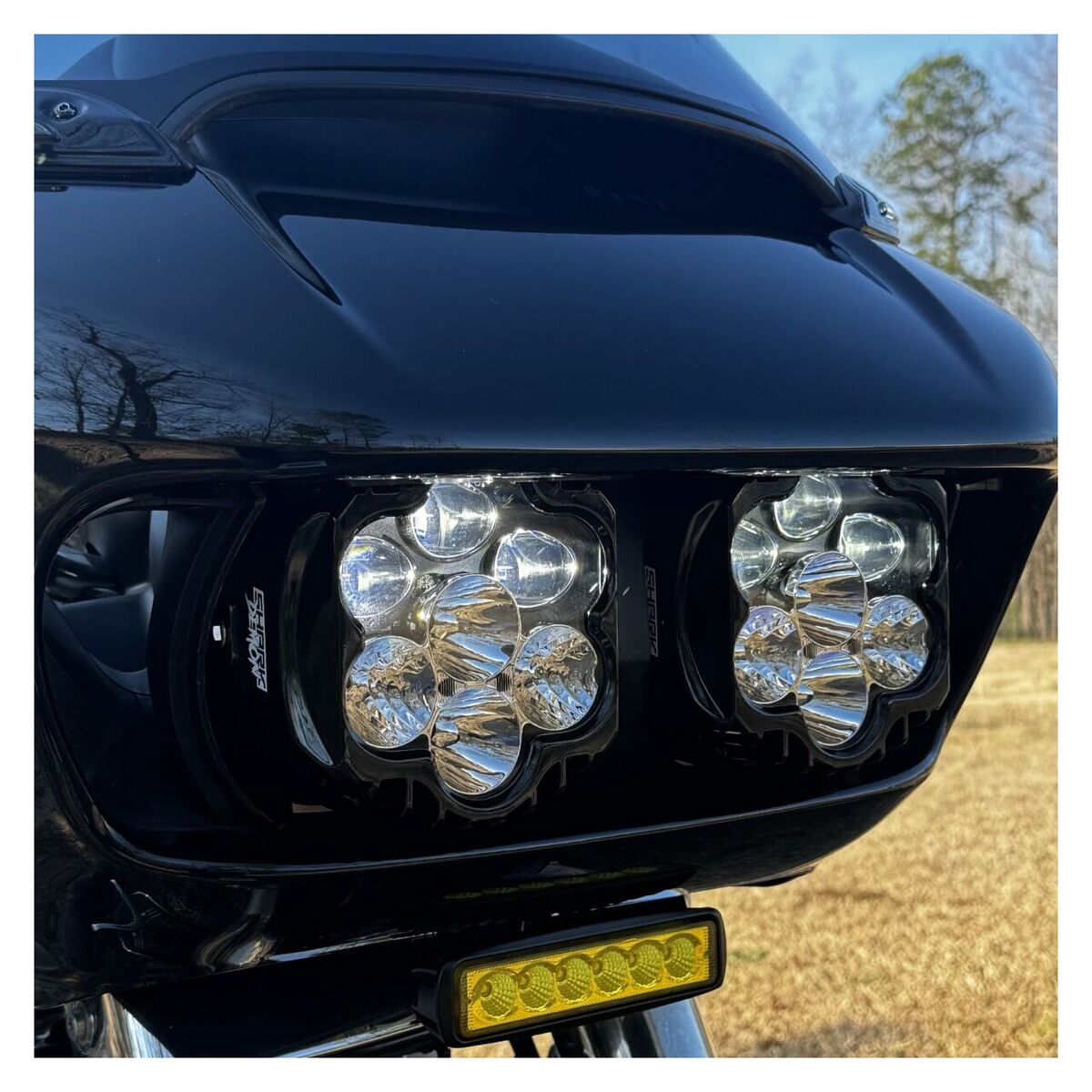

Featuring a dark gloss-black inner bezel and high-tech projector optics, the Shark Demon 2 completely modernizes your Road Glide’s aesthetic profile. Heavy-duty aluminum heat sinks built into the back of the housing draw heat away from the internal LED circuit boards, ensuring consistent light performance and an ultra-long operating lifespan back by a manufacturer lifetime warranty.
Shark Demon 2 LED Headlight vs. Stock Factory Lighting
Upgrading your Road Glide front lighting delivers dramatic improvements across visibility, safety, and power efficiency compared to OEM factory headlights:
| Performance Attribute | Stock Harley Factory Headlight | Custom Dynamics Shark Demon 2 |
|---|---|---|
| Beam Color & Clarity | Warm 3200K–4300K yellowish beam cut | Crisp 6000K pure daylight white for maximum contrast |
| Ditch & Cornering Spread | Narrow beam; creates dark blind spots in turns | Ultra-wide horizontal optical projection floods turn apexes |
| Housing Durability | Standard plastic lens; prone to yellowing & haze | Hard-coated UV-resistant polycarbonate with aluminum body |
| Electrical Efficiency | Higher power draw with hot thermal output | Low-amperage LED design minimizes stator strain |
Comprehensive Vehicle Fitment Guide (2015–2026)
The Custom Dynamics Shark Demon 2 LED Headlight is precision-engineered to fit all sharknose fairing layouts across the 2015 through 2026 Harley-Davidson Road Glide lineup.
Guaranteed Fitment Applications:
- Harley-Davidson Road Glide Custom / Standard (FLTRX): 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
- Harley-Davidson Road Glide Special (FLTRXS): 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
- Harley-Davidson Road Glide Ultra (FLTRU): 2016, 2017, 2018, 2019
- Harley-Davidson Road Glide Limited (FLTRK): 2020, 2021, 2022, 2023, 2024, 2025, 2026
- Harley-Davidson Road Glide ST (FLTRXST): 2022, 2023, 2024, 2025, 2026
- Harley-Davidson CVO Road Glide (FLTRSE): 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
Step-by-Step Installation Overview
Replacing your factory headlight with the Custom Dynamics Shark Demon 2 is a straightforward garage upgrade that takes under 45 minutes with standard hand tools.
Required Tools:
- Torx key set (T25, T27, T30)
- 3/8″ Ratchet and socket set
- Non-marring trim removal tool
- Microfiber towel (to protect painted fairing surfaces)
Installation Breakdown:
Step 1: Outer Fairing Preparation
- Park the motorcycle on a level surface, turn off the ignition key, and pull your main battery fuse for safety.
- Remove the windshield mounting screws and lift the windshield clear.
- Unbolt the outer fairing fasteners located inside the inner fairing and speaker housings using your Torx tools.
Step 2: Remove Stock Headlight Assembly
- Carefully tilt the outer fairing forward, unplugging the turn signal harnesses and main headlight power plug. Set outer fairing on a soft cloth.
- Unbolt the factory headlight retaining screws from the sub-frame mount and slide the original headlight assembly out.
Step 3: Mount & Connect the Shark Demon 2
- Position the Custom Dynamics Shark Demon 2 headlight into the factory sub-frame mounting cradle.
- Secure the unit using the stock mounting hardware, ensuring even alignment across all mounting points.

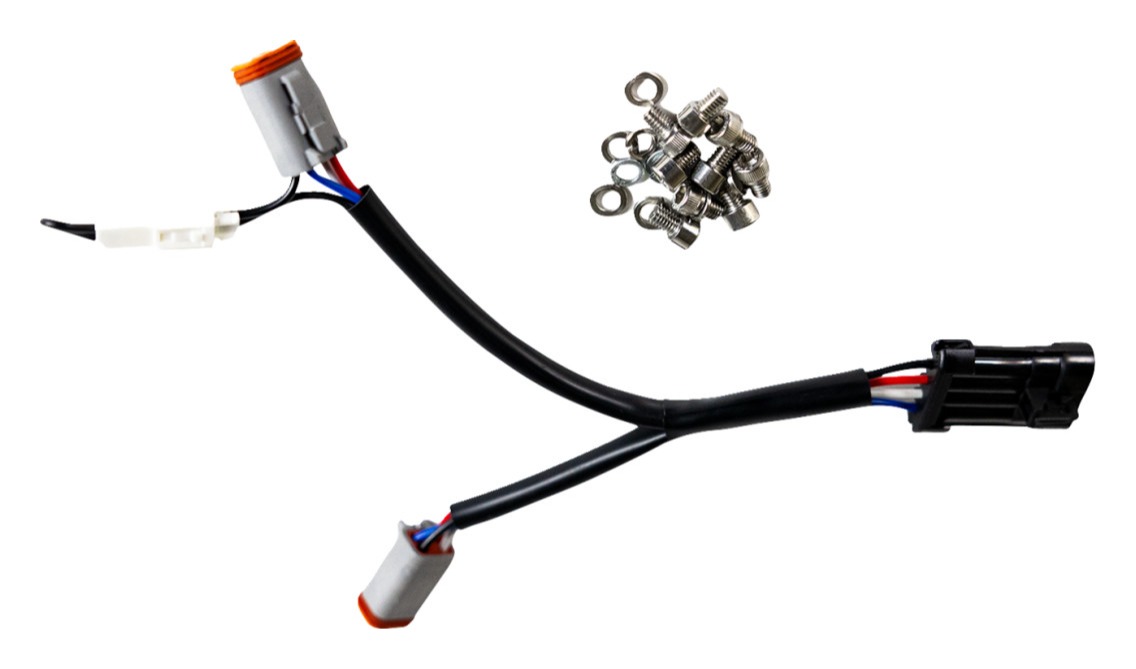

- Plug the OEM-style wiring harness directly into the factory headlight socket until the locking tab clicks firmly into place.
Step 4: System Alignment & Fairing Reassembly
- Re-insert the main battery fuse, turn on the ignition, and verify low-beam, high-beam, and position light functions.
- Aim the headlight beam against a flat wall 25 feet away, making minor height adjustments using the adjustment screws if necessary.
- Reinstall the outer fairing, turn signal plugs, and windshield. Torque fairing screws securely.
Frequently Asked Questions (FAQs)
Q: Does the Shark Demon 2 cause BCM fault codes or hyper-flashing on Harley CAN-bus systems?
A: No. The Shark Demon 2 is engineered with integrated load-matching circuitry designed specifically for Harley-Davidson CAN-bus electrical networks, ensuring error-free operation without triggering dash lights.
Q: Is the Custom Dynamics Shark Demon 2 DOT compliant?
A: Yes! The Shark Demon 2 meets or exceeds all DOT (Department of Transportation) and SAE performance standards for street-legal use in all 50 US states.
Q: Can I install this headlight myself, or do I need a dealer flash?
A: You can easily install it yourself! The unit is 100% plug-and-play and does not require any dealer ECU flashing or computer recalibration.
Q: What warranty does Custom Dynamics provide on this headlight?
A: Custom Dynamics backs the Shark Demon 2 with their industry-leading Lifetime LED Warranty against LED failure or defects.
Final Verdict: The Ultimate Headlight Upgrade for Your Road Glide
If you want to ride faster, safer, and with total clarity through the darkest nights, the Custom Dynamics Shark Demon 2 LED Headlight is the definitive front-end performance upgrade for your 2015–2026 Harley-Davidson Road Glide. Combining menacing blacked-out styling, massive lumen output, and plug-and-play reliability, it sets the standard for bagger lighting.
Transform your night riding experience and command the open road. Order your Custom Dynamics Shark Demon 2 today!
