Burly Rear Shock Lowering Kit For Harley Touring 2002-2008
Tail Drop: Burly Rear Shock Lowering Kit for Harley Touring (2002–2008)
The Burly Rear Shock Lowering Kit is a component designed to lower the rear ride height of Harley-Davidson Twin Cam Touring models (FLH/FLT) manufactured from 2002 through 2008.
This kit is an extremely popular and budget-friendly method of achieving a custom, lowered stance and improving ground reach while retaining the factory shock absorbers.
🔑 Key Features and Lowering Mechanism
Manufacturer Part # (Black): B28-42007
Drop Amount: This specific Burly kit is designed to lower the rear ride height by approximately 1 inch (1.00″).

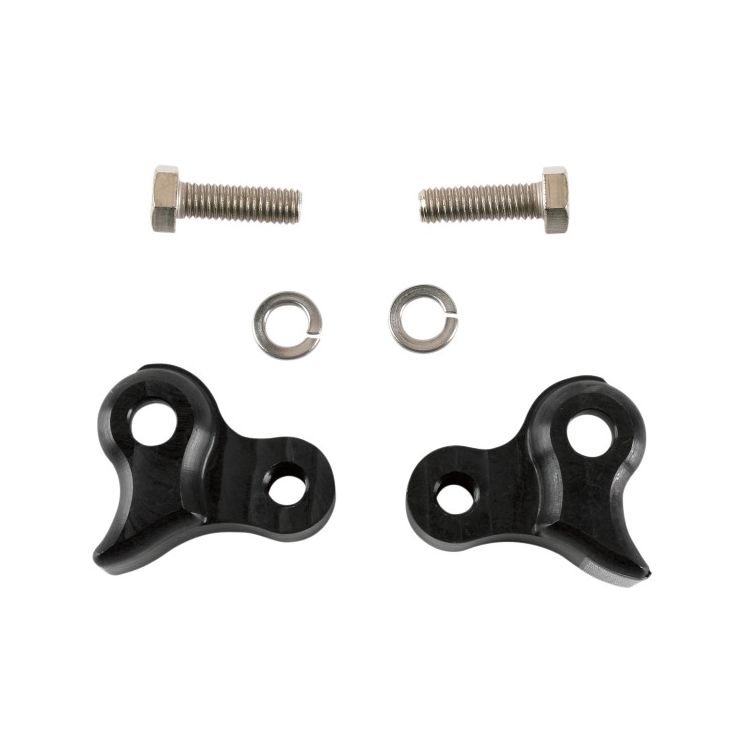

Mechanism (Lowering Blocks): The kit utilizes a pair of high-strength, powder-coated steel lowering blocks/brackets. These blocks are installed on the lower shock mount, changing the geometry to lower the bike’s resting height.
Cost-Effective: It is an inexpensive alternative to purchasing shorter, low-profile replacement shocks.
Compatibility: Designed for use with OEM and most aftermarket stock-length shocks.
Fitment and Exclusions (2002–2008 Touring)
The kit fits most standard-height Harley Touring models (FLH/FLT) in the 2002-2008 range, including:
Road King (FLHR)
Electra Glide Classic/Standard/Ultra (FLHTC/I, FLHT/I, FLHTCU/I)
Road Glide (FLTR/I)
Important Exclusions:
Factory-Lowered Models: Does NOT fit models that came lowered from the factory, such as the Street Glide (FLHX) or certain Road King Classic Injected (FLHRCI) models.
Shorty Shocks: Crucially, it is NOT to be used in conjunction with “shorty” or “low-profile” shocks due to the extreme risk of severe clearance issues and bottoming out.
Installation and Warnings
Installation: This is a simple bolt-on installation of the brackets/blocks to the lower shock mounts.
Ground Clearance: A 1-inch drop reduces your lean angle. You must check:
Tire-to-fender clearance.
Fender-to-belt clearance.
Frame-to-exhaust clearance.
Saddlebags: The altered shock angle may require spacing out the saddlebags slightly to prevent rubbing and damage.
Jiffy Stand: Check the motorcycle’s parking lean angle after installation. A new or modified shorter kickstand may be required for stability.
The Burly Rear Shock Lowering Kit is a straightforward and economical way to achieve a lowered look on your 2002–2008 Harley Touring bike.
Burly Rear Shock Lowering Kit For Harley Touring
Looking for an inexpensive and quick install? Burly Brand Lowerking Blocks is the solution for you. The Burly Lowering Blocks are time tested method to drop virtually any HD without hurting your wallet. A bike lift and a few bolts are all that is needed to pull up to an inch and a half out of the rear of most Sporties, Dynas, and FLH models.
Features
Simple bolt on install
Includes mounting hardware
Designed for OEM and most aftermarket tock length shocks
Fender to belt and tire clearance must be checked along with frame and exhaust clearance
Made in the USA
| Product Style | AmericanV-twin Item # | Catalog Number | Store Sku | MFR. Product # | Availability |
|---|---|---|---|---|---|
| Black | 898143 | 700-420 | 299402 | B28-42007 | In Stock: Ships within 24 hours |
This Product Fits
Harley Davidson
Electra Glide Classic FLHTC/I 2002-2008
Electra Glide Standard FLHT/I 2002-2008
Electra Glide Ultra Classic FLHTCU/I 2002-2008
Road Glide FLTR/I 2002-2008
Road King FLHR/I 2002-2008
