Tail Drop: Burly Rear Shock Lowering Kit for Harley Sportster (2000–2003)
The Burly Rear Shock Lowering Kit is an extremely popular and budget-friendly component designed to lower the rear ride height of the Harley-Davidson Sportster (XL) models from 2000 through 2003.
This kit utilizes lowering blocks/brackets to achieve a custom stance while retaining your original factory-length shocks.
🔑 Key Features and Lowering Mechanism
Manufacturer Part # (Black): B28-260
Drop Amount: This specific lowering block kit is designed to drop the rear ride height by approximately 1 inch (1.00″).

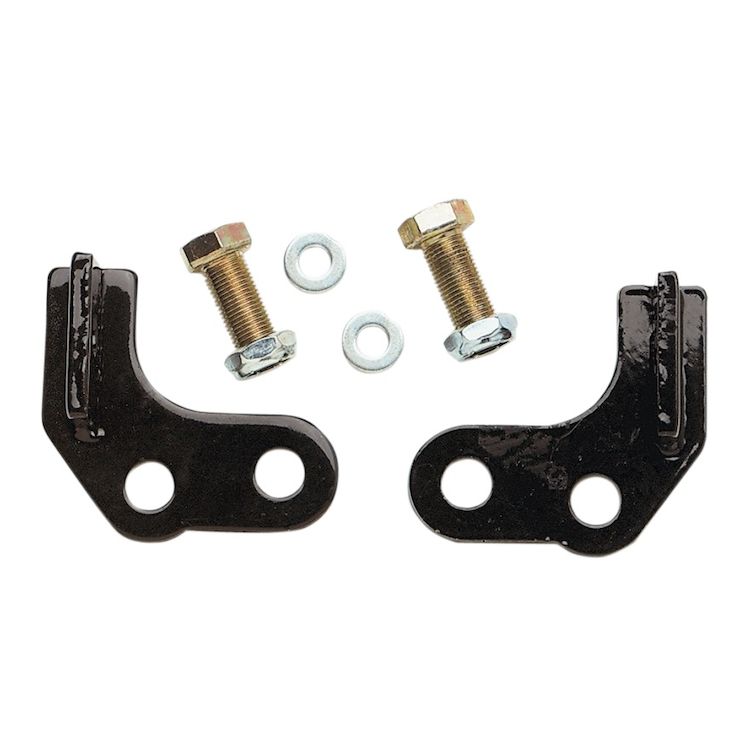

Mechanism (Lowering Blocks): The kit consists of high-strength, powder-coated steel brackets/blocks. These are installed at the lower mounting point of the external rear shocks, effectively relocating the shock’s anchor point to reduce the bike’s resting height.
Cost-Effective: It is an inexpensive, quick-to-install alternative to purchasing a new set of shorter shocks.
Compatibility: Designed for use with OEM and most aftermarket stock-length shocks on the 2000-2003 Sportster models.
Fitment and Exclusions (2000–2003 Sportster)
This kit fits most standard-height Harley Sportster models (XL) in the 2000-2003 range, including:
XLH883 (Standard, Hugger, Custom)
XLH1200 (Standard, Custom, Sport)
Important Exclusions:
Hugger & Custom Models: Some listings warn that this kit may NOT fit factory-lowered models like the Hugger (XLH883HUG) or Custom (XL1200C/XL883C), as these bikes already have shorter shocks/travel, and lowering further can cause immediate clearance issues.
Shorty Shocks: Crucially, it is NOT to be used in conjunction with “shorty” or “low-profile” shocks (like Burly’s own 10.5″ Slammer shocks). The combined drop would eliminate virtually all travel and cause tire-to-fender or frame-to-belt contact.
Installation and Warnings
Installation: This is a simple bolt-on installation of the brackets/blocks.
Ground Clearance: Even a 1-inch drop reduces your lean angle. It is mandatory to check clearances:
Tire-to-fender contact (must be less than 9.0 inches from center-to-center shock mount measurement at the contact point).
Fender-to-belt/belt guard clearance.
Frame-to-exhaust clearance.
Jiffy Stand: Check the motorcycle’s parking lean angle after installation. Your stock kickstand may need to be shortened or replaced for stability.
If you are looking for a more dramatic drop (up to 2.5 inches), Burly’s Slammer Shocks (10.5″ eye-to-eye replacement shocks) are the alternative, though they are more expensive and offer a much stiffer ride.
Burly Rear Shock Lowering Kit For Harley Sportster
Looking for an inexpensive and quick install? Burly Brand Lowerking Blocks is the solution for you. The Burly Lowering Blocks are time tested method to drop virtually any HD without hurting your wallet. A bike lift and a few bolts are all that is needed to pull up to an inch and a half out of the rear of most Sporties, Dynas, and FLH models.
Features:
Simple bolt on install
Includes mounting hardware
Designed for OEM and most aftermarket tock length shocks
Fender to belt and tire clearance must be checked along with frame and exhaust clearance
Made in the USA
| Product Style | AmericanV-twin Item # | Catalog Number | Store Sku | MFR. Product # | Availability |
|---|---|---|---|---|---|
| Black | 898170 | 701-196 | B28-260 | In Stock: Ships within 24 hours |
This Product Fits
Harley Davidson
Sportster Roadster XL883R 2002, 2003
Sportster XLH1200 2000, 2001, 2002, 2003
Sportster XLH883 2000, 2001, 2002, 2003
