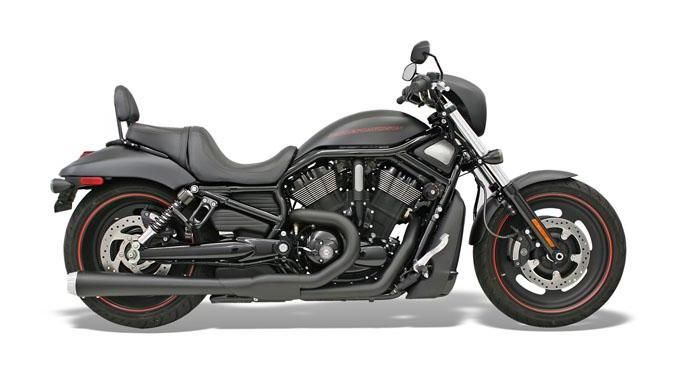

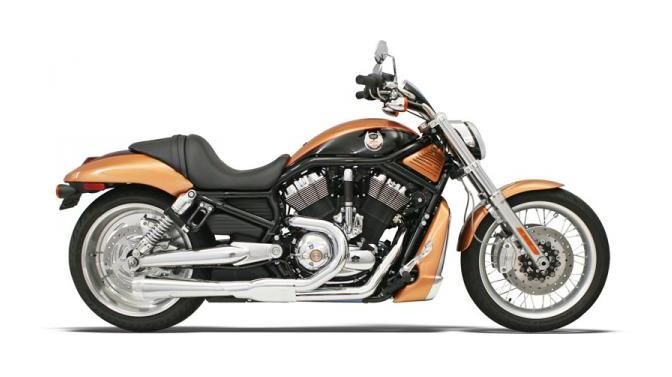

Bassani Xhaust Road Rage 2-Into-1 System for Harley-Davidson V-Rod VRSCA & VRSCB (2002–2005)
Unlock peak horsepower, immediate throttle response, and a deep, aggressive exhaust note with the legendary Bassani Road Rage 2-Into-1 Exhaust System, engineered specifically for 2002 through 2005 Harley-Davidson VRSCA and VRSCB V-Rod models. Combining race-proven stepped-header technology, high-flow collector dynamics, and premium mandrel-bent construction, this performance exhaust system converts the Revolution 60-degree V-Twin liquid-cooled engine into an absolute street-clearing powerhouse.
The early-generation Harley-Davidson V-Rod was a breakthrough in high-RPM performance, but its factory dual exhaust setup chokes mid-range torque and restricts top-end airflow. Bassani Xhaust solves this limitation with their signature 2-into-1 equal-length headpipe design. By scavenging exhaust gases efficiently out of the cylinders, the Road Rage system broadens your powerband across the entire RPM range while shedding considerable weight compared to bulky stock mufflers.
Why Upgrade to the Bassani Road Rage 2-Into-1 System?
Unlike standard slip-on mufflers or straight pipe designs that reduce backpressure and rob low-end torque, Bassani’s stepped header technology is dyno-tuned specifically for high-revving V-Twin architectures. The system starts with smaller diameter primary pipes that step up into larger secondary tubes, accelerating exhaust gas velocity without creating restrictive backpressure bottlenecks.
| BASSANI ROAD RAGE V-ROD EXHAUST SPECIFICATIONS | |
|---|---|
| Compatibility | 2002–2005 Harley-Davidson V-Rod Models (VRSCA & VRSCB) |
| System Architecture | Equal-Length Stepped-Header 2-Into-1 Performance Exhaust |
| Header Diameter | 1-3/4″ Stepping to 1-7/8″ Mandrel-Bent Tubing |
| Collector Type | High-Flow Merged Collector with Internal Baffle Assembly |
| Heat Shielding | Full-Coverage Matching Heat Shields Included |
| Finish Options | Show-Quality Chrome Plating / Ceramic High-Temp Black |
| Oxygen Sensor Ports | Integrated O2 Sensor Bungs (Supports Stock & Auto-Tune Systems) |
| Country of Manufacture | Made in the USA |
1. Dyno-Proven Horsepower & Torque Gains
The primary performance benefit of the Bassani Road Rage 2-into-1 system lies in its scavenging efficiency. As exhaust pulses merge at the high-flow 4-inch reverse-cone mega collector, a low-pressure vacuum is generated that pulls spent gases out of the combustion chamber. This allows fresh fuel-air charge to enter faster, resulting in noticeable dyno gains of up to 10–15% in horsepower and mid-range pulling power.
2. Signature Deep Acoustic Tone
The Revolution engine operates at higher RPMs than traditional pushrod Twin Cam engines. Standard pipes can sound harsh or high-pitched at high speed. The Bassani Road Rage features a removable, spiral-louvered performance core baffle that transforms the exhaust note into a deep, throaty rumble at idle that turns into a crisp, race-inspired roar when rolling on the throttle.
3. Full-Coverage Heat Shields & Clean Finish
Heat management is critical on liquid-cooled V-Rods. Bassani includes full-coverage heat shields that fit contours tightly over the primary and secondary headers. This hides bluing or heat discoloration, preserves shoe and leg safety, and maintains a clean, custom aesthetic year after year.
2-Into-1 Performance vs. Factory Dual Exhaust Systems
Replacing your factory V-Rod exhaust with a high-performance Bassani 2-into-1 system delivers clear advantages across weight, power delivery, and lean angle clearance:
| Performance Attribute | Factory Stock V-Rod Dual Exhaust | Bassani Road Rage 2-Into-1 System |
|---|---|---|
| Exhaust Gas Flow | Restrictive dual mufflers; causes mid-range power flat spots | Engineered 2-1 merge collector accelerates gas velocity |
| Overall System Weight | Heavy OEM steel mufflers (35+ lbs total weight) | Lightweight race design; reduces rear-end weight by ~15 lbs |
| Cornering Clearance | Low-slung dual mufflers can scrape in aggressive turns | Tucked high-and-tight header routing maximizes lean angle |
| Exhaust Heat Shielding | Partial heat coverage; exposes pipe bluing over time | Full-coverage heat shields eliminate visible pipe bluing |
Comprehensive Vehicle Fitment Guide (2002–2005)
The Bassani Road Rage 2-Into-1 Exhaust System is custom-engineered specifically for early-generation Harley-Davidson V-Rod frame layouts and mid/forward control positions.
Guaranteed Fitment Applications:
- Harley-Davidson V-Rod VRSCA: 2002, 2003, 2004, 2005
- Harley-Davidson V-Rod VRSCB: 2004, 2005
(Note: Designed for standard 180mm rear tire models. Fits with OEM passenger footpegs and mid/forward control setups.)
Step-by-Step Installation Overview & Tuning Recommendations
Installing the Bassani Road Rage system on your 2002–2005 V-Rod is a rewarding garage project. Follow these installation steps to ensure leak-free performance.
Required Tools:
- 3/8″ Drive Ratchet with extension bars
- Sockets: 1/2″, 7/16″, 10mm (for flange nuts and brackets)
- Torx bit set (T25, T27, T30)
- New Harley-Davidson OEM conical exhaust port gaskets
- Degreaser / Microfiber towel (for wiping down chrome/black finish before startup)
Installation Steps:
Step 1: Bike Prep & Stock Removal
- Park the motorcycle on a sturdy level stand, turn off the ignition, and let the engine cool completely.
- Remove the stock mufflers, front and rear heat shields, and primary header pipes by unbolting the exhaust port flange nuts on both cylinders.
- Carefully remove the old crushed exhaust port gaskets from the cylinder heads using a non-marring hook tool.
Step 2: Install Gaskets & Position Headers
- Gently press new OEM conical exhaust gaskets into the front and rear cylinder exhaust ports.
- Slide the flange rings onto the front and rear Bassani header pipes. Insert the headers into the exhaust ports and hand-tighten the flange nuts so the pipes remain adjustable.
Step 3: Mount the Collector & Exhaust Bracket
- Slide the 2-into-1 merge collector mega pipe over the primary header ends.
- Attach the heavy-duty rear mounting bracket to the frame subframe rail using provided hardware.
- Align the muffler body with the bracket, install mounting bolts hand-tight, and verify that the system is centered cleanly alongside the swingarm.
Step 4: Torque Fasteners & Clean System
- Torque the cylinder head flange nuts evenly in an alternating pattern to factory specifications (100–120 in-lbs). Tighten bracket bolts securely.
- Install the full-coverage heat shields using the provided hose clamps, aligning seam gaps out of sight underneath.
- CRITICAL STEP: Thoroughly wipe down the entire chrome or black finish with a degreaser cleaner and a clean microfiber towel to remove finger oils. Fingerprints left on uncleaned pipes will permanently bake into the finish during initial heat cycle!
- Start the engine and check for exhaust leaks around port gaskets and collector joints.
Fuel Tuning Notice for V-Rod Owners
Because the Bassani Road Rage 2-Into-1 System significantly increases airflow and reduces exhaust restriction, **EFI recalibration (fuel tuning) is strongly recommended**. Running high-flow performance exhausts on early 2002–2005 V-Rods without adjusting the fuel map can lead to lean fuel-air ratios, popping on deceleration, and excessive engine heat.
Pairing this exhaust with an aftermarket tuner (such as a Vance & Hines Fuelpak, Dynojet Power Commander, or TTS Mastertune) will ensure your motor runs cool, delivers maximum horsepower gains, and operates smoothly across all gear shifts.
Frequently Asked Questions (FAQs)
Q: Do I need to buy new exhaust gaskets when installing this system?
A: Yes, absolutely. Reusing old crushed exhaust port gaskets often leads to minor exhaust leaks that cause popping on deceleration. Always install fresh OEM conical exhaust gaskets during installation.
Q: Will this Bassani Road Rage system fit wider 240mm or 300mm rear tire custom V-Rods?
A: This specific SKU is designed for 2002–2005 narrow frame models equipped with stock 180mm rear tires. Wide tire conversions require custom offset collector clearance pipes.
Q: Is the internal baffle removable if I want a louder exhaust note?
A: Yes. The spiral-louvered baffle inside the muffler canister can be removed or swapped for quiet/competition baffle options depending on your preferred acoustic output.
Q: Where are Bassani Xhaust systems manufactured?
A: All Bassani Xhaust products are designed, dyno-tested, precision welded, and manufactured in the United States.
Final Verdict: The Ultimate Street-Racer Upgrade for Early V-Rods
If you want to unlock the true racing heritage of your 2002–2005 Harley-Davidson V-Rod VRSCA/VRSCB, the Bassani Road Rage 2-Into-1 Exhaust System is the premier performance upgrade. Delivering aggressive stepped-header horsepower, lightweight race construction, and a deep throaty sound, it completely elevates your motorcycle’s street presence.
Eliminate power bottlenecks and give your V-Rod the performance tone it deserves. Order your Bassani Road Rage 2-Into-1 Exhaust today and experience maximum high-RPM acceleration!
