Baja Designs DOT LP6 LED DRL Headlight Conversion Kit for Harley-Davidson Road Glide Models (2015–2026)
Unleash race-proven off-road illumination on the open highway with the high-performance Baja Designs DOT LP6 LED DRL Headlight Kit, custom-engineered for Harley-Davidson Road Glide (FLTR) models spanning 2015 through 2026. Replacing factory dual-headlight assemblies with Baja Designs’ iconic dual LP6 Pro pod setup, this complete conversion kit turns your sharknose fairing into an optics powerhouse capable of slicing through pitch-black highways, desolate canyon roads, and heavy coastal fog.

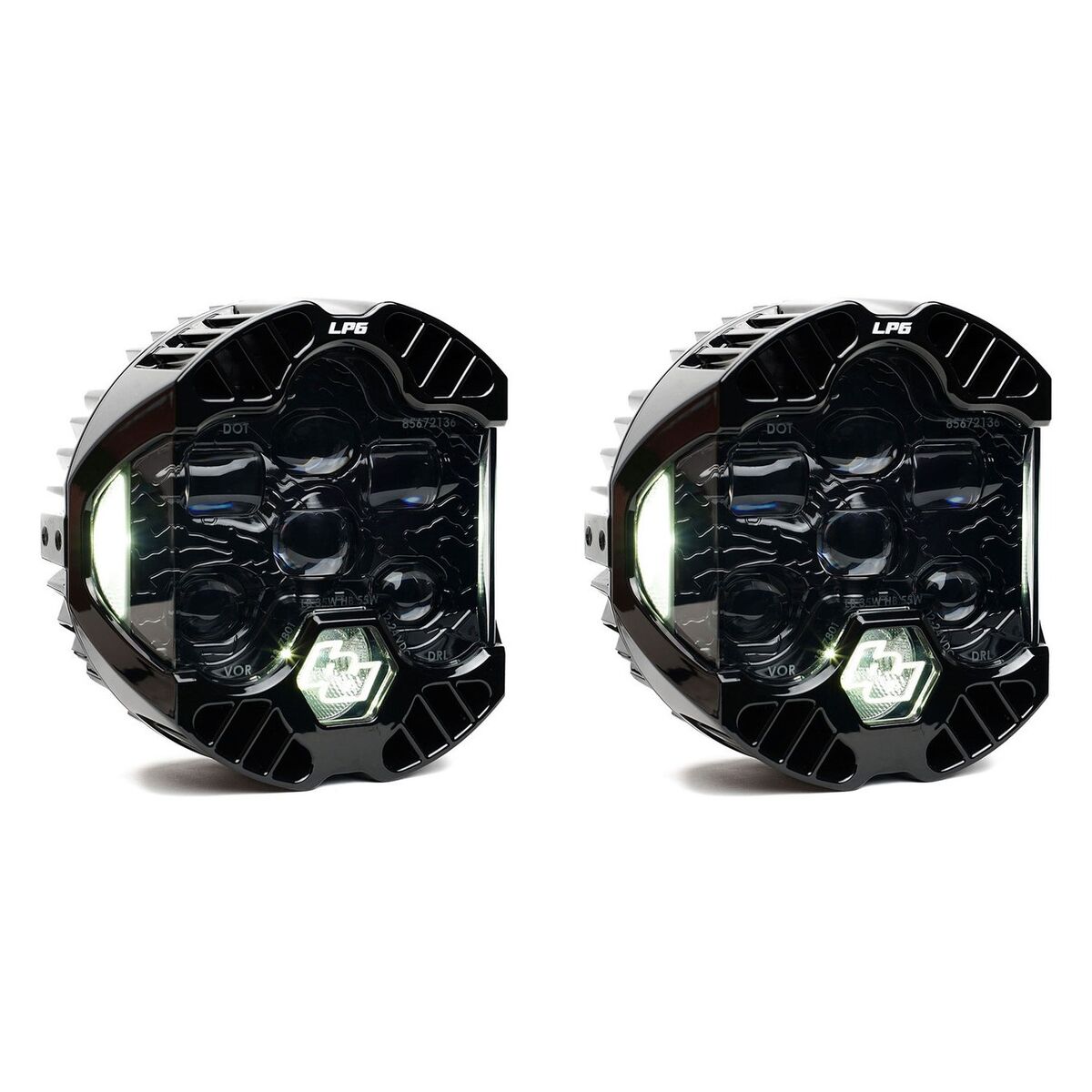

Riding a heavy bagger at speed requires exceptional long-distance projection and wide peripheral coverage to spot road debris, corner apexes, and wildlife early. Factory OEM headlights often cast dim, narrow beams with severe dark spots through sharp turns. The Baja Designs LP6 kit eliminates these limitations completely, pairing high-candlepower forward optics with patented Integrated Peripheral Technology (IPT) to flood roadside ditches and riding lanes with crisp 5000K daylight-white clarity.
Why Choose the Baja Designs DOT LP6 Headlight System?
Famous for dominating grueling desert endurance races like the Baja 1000, Baja Designs brings race-grade thermal dynamics and optical engineering directly to the V-Twin cruiser world. The Road Glide LP6 Headlight Kit includes laser-cut fairing bracketry, custom-molded trim bezels, and plug-and-play wiring looms to deliver a factory-finished look with staggering aftermarket lighting performance.
| BAJA DESIGNS DOT LP6 LED HEADLIGHT KIT SPECIFICATIONS | |
|---|---|
| Compatibility | 2015–2026 Harley-Davidson Road Glide Models (FLTRX, FLTRU, FLTRK, FLTRXST, CVO) |
| Light Color Temperature | 5000K Natural Daylight (Reduces Eye Fatigue & Improves Contrast) |
| Peripheral Optics | Integrated Peripheral Technology (IPT) 200° Horizontal Lighting Spread |
| Housing Construction | Hard-Anodized Aluminum Pod Bodies with Direct-Discharge Heat Sinks |
| Lens Material | Replaceable Hard-Coated Polycarbonate Lenses (uService® Design) |
| Waterproof / Dust Rating | IP69K Submersible & High-Pressure Wash Waterproof Compliance |
| Electrical Harness | 100% Plug-and-Play Factory Harley Wiring Adapter Harness |
| Street Compliance | DOT-Compliant Low Beam & Integrated LED Daytime Running Light (DRL) |
1. Patented 200° Integrated Peripheral Technology (IPT)
Standard projector headlights only throw light straight ahead, creating dark blind spots when leaning into turns. Baja Designs LP6 pods feature side-shooting LED optics operating on dedicated IPT reflectors. This projects a massive 200° horizontal arc of light across roadside ditches, turn apexes, and highway shoulders, keeping your entire field of vision illuminated through tight cornering maneuvers.
2. Direct-Discharge Air-Cooling & uService® Maintainability
High-output LEDs generate intense heat. The LP6 housing incorporates Baja Designs’ Direct-Discharge Air-Cooling technology, utilizing massive cooling fins to pull heat away from internal circuit boards and preserve LED output. Additionally, thanks to the modular uService® design, lenses and optics can be replaced or color-changed in minutes without voiding your warranty.
3. Seamless Plug-and-Play Fairing Integration

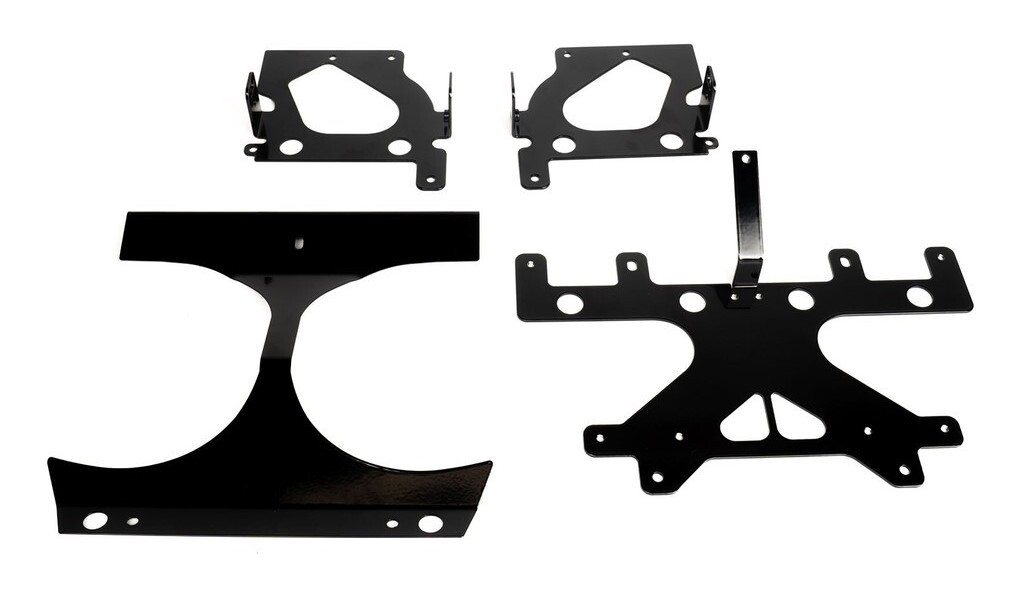

Installing high-end lighting shouldn’t require cutting painted bodywork or hacking up factory wiring harness assemblies. The kit includes a precision powder-coated steel mounting bracket that bolts directly into the stock Road Glide sub-frame. Combined with custom-molded fairing trim shrouds and plug-and-play wire adapters, installation maintains a clean, aggressive custom finish.
Baja Designs LP6 Kit vs. Standard OEM Road Glide Headlights
Upgrading your Road Glide from factory stock lighting to the dual Baja Designs LP6 system provides dramatic performance gains across light distance, thermal durability, and eye comfort:
| Performance Attribute | Stock Harley Road Glide Headlight | Baja Designs DOT LP6 LED Kit |
|---|---|---|
| Light Color & Comfort | Warm 3200K–4300K yellowish beam; high night eye strain | 5000K Natural Daylight white; mimics natural sunlight to reduce eye fatigue |
| Peripheral Ditch Spread | Narrow center throw; dark blind spots in turns | 200° horizontal arc (IPT) floods ditch-to-ditch without dark spots |
| Lens Maintenance | Sealed plastic unit; must replace entire assembly if damaged | uService® modular design allows quick field lens and optic replacement |
| Weatherproof Rating | Standard weather sealing; vulnerable to internal moisture haze | IP69K extreme pressure-wash and submersible rating (MoistureBlock™) |
Comprehensive Vehicle Fitment Guide (2015–2026)
The Baja Designs DOT LP6 LED Headlight Kit is engineered specifically to match the internal sub-frame geometry of all 2015 through 2026 Harley-Davidson Road Glide models.
Guaranteed Fitment Applications:
- Harley-Davidson Road Glide Custom / Standard (FLTRX): 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
- Harley-Davidson Road Glide Special (FLTRXS): 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
- Harley-Davidson Road Glide Ultra (FLTRU): 2016, 2017, 2018, 2019
- Harley-Davidson Road Glide Limited (FLTRK): 2020, 2021, 2022, 2023, 2024, 2025, 2026
- Harley-Davidson Road Glide ST (FLTRXST): 2022, 2023, 2024, 2025, 2026
- Harley-Davidson CVO Road Glide (FLTRXSE / FLTRSE): 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
Step-by-Step Installation Overview & Alignment Guide
Upgrading your Road Glide to the dual Baja Designs LP6 setup is a manageable garage task requiring standard hand tools and basic mechanical knowledge.
Required Tools:
- Torx drivers (T25, T27, T30)
- 3/8″ Ratchet and socket set (10mm, 7/16″, 1/2″)
- Hex key set (Allen wrenches)
- Non-marring pry tools & microfiber towel
- Blue threadlocker (Loctite 242)
Installation Breakdown:
Step 1: Outer Fairing Removal
- Park the motorcycle on a level surface, switch off the ignition key, and pull the main system battery fuse for safety.
- Remove windshield mounting screws and carefully set the windshield aside on a soft cloth.
- Remove the outer fairing Torx fasteners along the inner fairing edges and speaker enclosures, then carefully tilt outer fairing forward and disconnect turn signal wires.
Step 2: Remove Stock Headlight Module & Install Bracket
- Unplug the factory headlight connector and unbolt the original headlight mounting assembly from the fairing sub-frame.
- Position the laser-cut Baja Designs heavy-duty steel mounting bracket into the sub-frame cradle and secure using provided hardware and blue threadlocker.
Step 3: Mount LP6 Pods & Connect Wiring
- Mount the dual LP6 LED pods into the bracket frame, adjusting initial vertical angle before tightening mounting bolts.
- Connect the included plug-and-play adapter harness between the LP6 pods and the factory Harley headlight plug.
- Attach the custom-molded fairing trim shroud around the LP6 pods for a clean, gap-free appearance.
Step 4: Function Check, Beam Aiming & Reassembly
- Re-insert the main battery fuse, turn on the ignition, and verify DRL amber backlight, low-beam, and high-beam functions.
- Aim the lights against a flat wall 25 feet away to set correct vertical cutoff, then torque LP6 bracket bolts to specification.
- Reinstall the outer fairing, turn signal plugs, and windshield securely.
Frequently Asked Questions (FAQs)
Q: Does this Baja Designs LP6 kit cause error codes on Harley CAN-bus systems?
A: No. The kit includes custom-engineered wiring adapters with load-matching circuitry designed specifically for Harley-Davidson electrical networks, ensuring error-free operation without dash warnings.
Q: Is the Baja Designs DOT LP6 kit street legal?
A: Yes! This kit utilizes DOT-compliant LP6 light pods featuring an approved low beam cutoff pattern and integrated Daytime Running Light (DRL) for 50-state legal street use on public highways.
Q: Can I change the lens color on the LP6 pods later?
A: Absolutely! Thanks to Baja Designs’ uService® technology, you can unbolt the front bezel and swap between clear, amber, or selective yellow lenses in minutes without voiding your warranty.
Q: Will this kit draw too much power from my motorcycle’s charging system?
A: No. While the LP6 pods produce massive lumen output, high-efficiency LED drivers keep power consumption well within the output limits of factory Harley-Davidson stators.
Final Verdict: The Ultimate Baja-Proven Headlight Upgrade for Your Road Glide
If you demand the absolute pinnacle of lighting distance, peripheral ditch visibility, and race-proven durability for your 2015–2026 Harley-Davidson Road Glide, the Baja Designs DOT LP6 LED DRL Headlight Kit is the ultimate conversion package. Transform your bagger’s front profile and command dark highways with total confidence.
Own the night with race-proven optics. Order your Baja Designs LP6 Road Glide Headlight Kit today!
